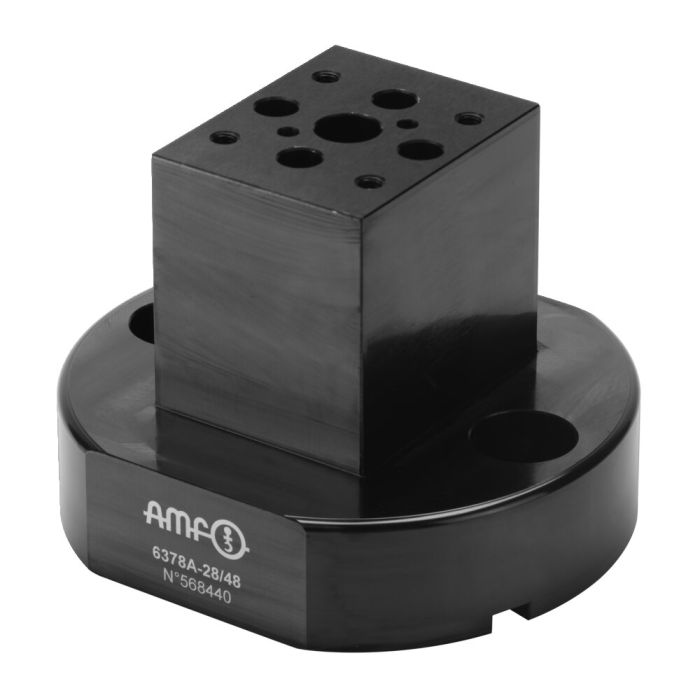

Adapter for multiple clamping system "EasyVise"
For the multiple clamping system EASY VISE
Order no.
568440
Application:
The adapter serves as receptacle for the multiple clamping system EASY VISE. It can be fastened to the machine table using a machine vice, T-slots or the AMF zero-point clamping system size 10 or size 20.
Note:
- Pay attention to the correct screw length when using the system on T-slot tables with a slot larger than 14.
Advantage:
- Compatible for all manufacturers of clamping equipment with pitch spacing of 52 mm, thread size M8.
| Order no. | 568440 |
|---|---|
| Operating mode | Mechanical |
| Backenbreite | 28, 48 |
