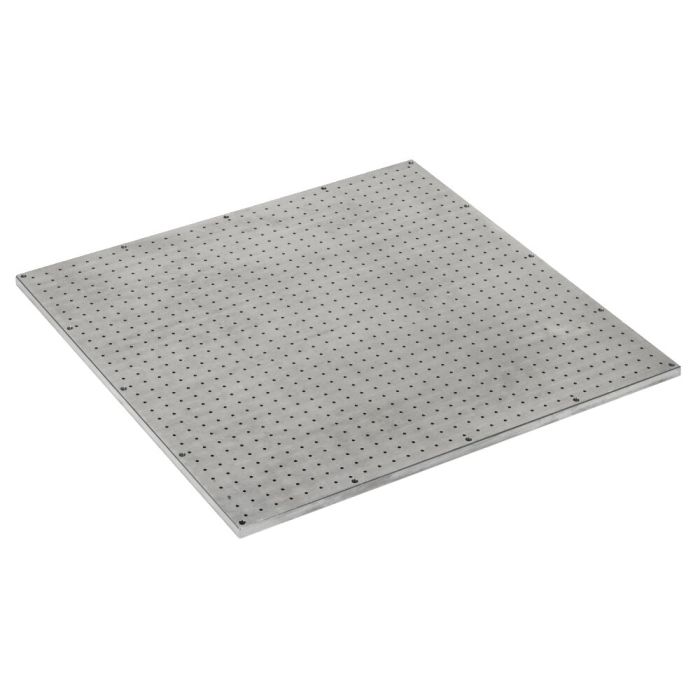

Adapter plate, aluminium
600 x 800 mm
Order no.
563567
Application:
1. The sealing cord is placed in the grid of the vacuum clamping plate. It goes up to the end of the area to be worked on in the workpiece.
2. The adapter plate is screwed to the vacuum clamping plate.
3. The workpiece to be worked on is placed on it.
4. The workpiece is fixed using the adjustable eccentric stops.
Advantage:
- The adapter plate can be overcut by up to 2 mm (elimination of cuts).
- Preferred uses are for processing thin sheet metal, foils, boards and even paper.
| Order no. | 563567 |
|---|---|
| Length [mm] | 600 |
| Width [mm] | 800 |
