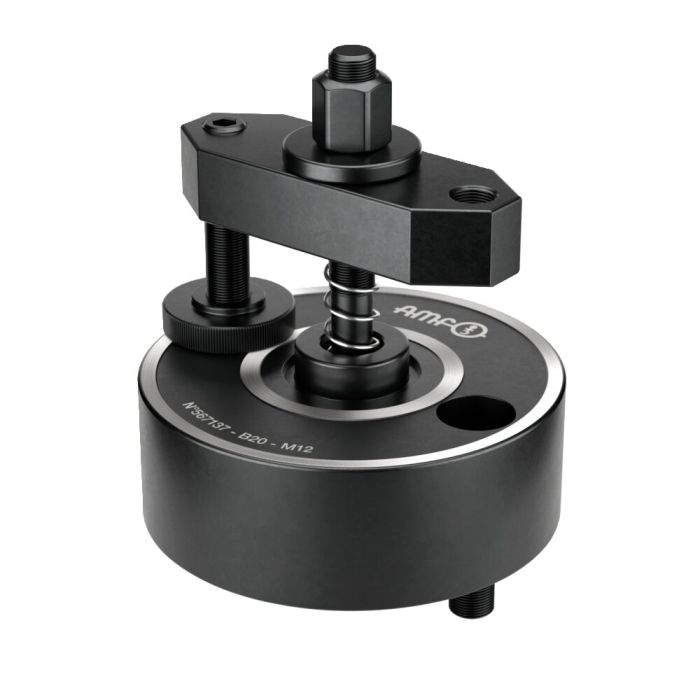

Adapter with straight clamp

Application:
The adapter is used with a straight clamp to implement the first clamping of a workpiece by the AMF modular system. For this, the adapter can be clamped to basic or intermediate elements of sizes B10 and B20, or to clamping modules BH10, BP10, BH20, BP20.
The adapter has an integrated stop for the workpiece and a supporting spring element to hold the clamp in position which simplifies handling. The clamping height is variable and different compression pieces can be used to adapt to the clamp.

Note:
The fastening bolts are supplied as standard.
Suitable compression pieces, e.g. 7110DIX-**xM** and 7110DKX-**xM** can be found in the AMF "Standard clamping elements" catalogue.

Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Especially suitable for moving workpieces into the required height for machining in the machine tool and to clamp it safely.
