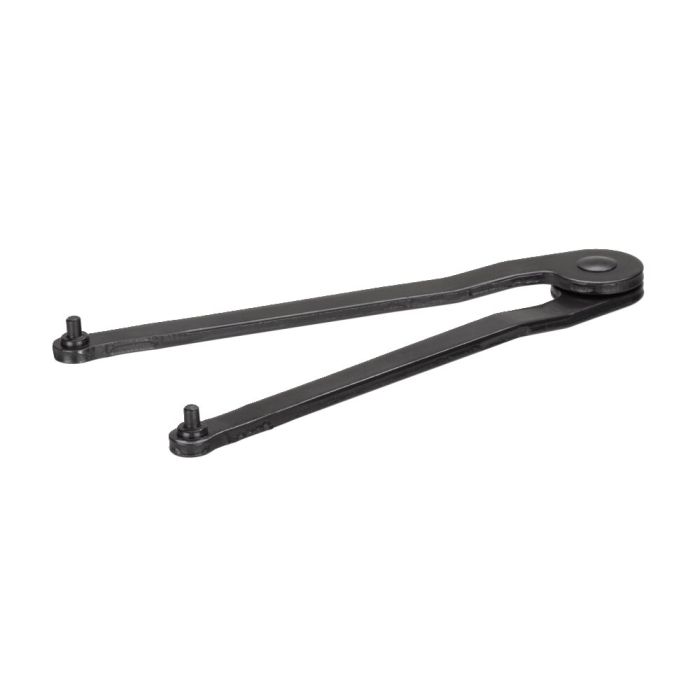

Adjustable pin wrench for nuts with 2 holes
Blued, pin spacing 7-40 mm, ⌀ pin 1,5 mm
| Order no. | A | dia. D* | L1 | L | T | Weight
[g] | Availability | Your Price |
| 40477 | 7 - 40 | 1,5 | 2 | 115 | 3 | 40 | | |
| 40485 | 7 - 40 | 2,0 | 2,5 | 115 | 3 | 40 | | |
| 40493 | 7 - 40 | 2,5 | 3 | 115 | 3 | 40 | | |
| 40618 | 11 - 60 | 3 | 4 | 160 | 4 | 140 | | |
| 40626 | 11 - 60 | 4 | 5 | 160 | 4 | 140 | | |
| 40634 | 11 - 60 | 5 | 6 | 160 | 4 | 140 | | |
| 40758 | 14 -100 | 5 | 6 | 215 | 6 | 300 | | |
| 40766 | 14 -100 | 6 | 7 | 215 | 6 | 300 | | |
| 40774 | 14 -100 | 8 | 8 | 215 | 6 | 300 | | |
| 40899 | 22 -125 | 8 | 8 | 260 | 6 | 500 | | |
| 40907 | 22 -125 | 10 | 10 | 260 | 6 | 500 | | |
| 40915 | 22 -125 | 12 | 12 | 260 | 6 | 500 | | |
| | | | | | | | |
* Pin diameter = nominal diameter -0.1mm (tolerance class h12).
More Information | Order no. | 40477 |
|---|
| Finishing | Blued |
|---|
| Pin spacing min. [mm] | 7 |
|---|
| Pin spacing max. [mm] | 40 |
|---|
| Pin diameter [mm] | 1.5 |
|---|
