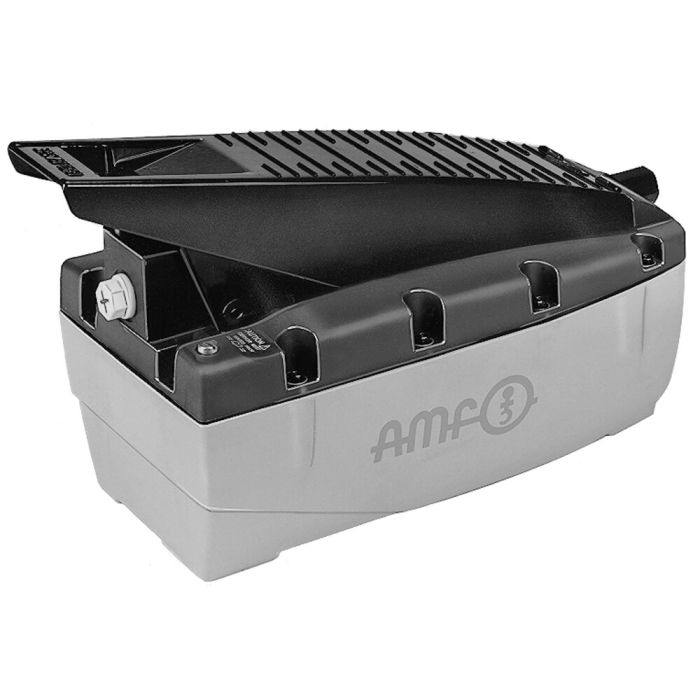

Air-hydraulic Pump
Design:
Compact compressed air operated hydraulic pump for single acting circuits. Robust plastic tank. The motor is protected against contamination by an air filter at the inlet and an internal oil filter. Safety valve to prevent overpressure and sound absorbers are fitted. Oil supply via threaded port.
Application:
The air-hydraulic pump can be used for small hydraulic clamping and assembly equipment. The air-hydraulic pump is designed for single acting cylinders.
Features:
The large air/oil intensification ratio allows for high hydraulic pressures even with small air pressure. Low weight allows for mobile application. The pump can be mounted horizontally or vertically.
Note:
Optionally, pumps with other operating pressures are available upon request. Please observe proper venting of the single acting system.
All tolerances other than specified refer to DINISO 2768 mittel (medium).
| Order no. | 69435 |
|---|---|
| Max. operating pressure [bar] | 500 |
| Type of actuation | Single acting |
| Clamping circuits | 1 |
