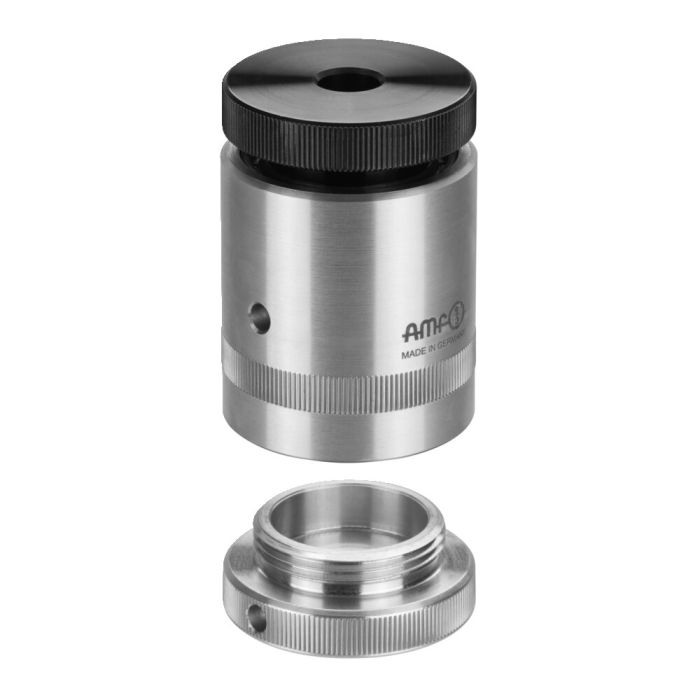

Aluminium screw jack with chip guard plate and aluminium base
Size 88, centring hole Ø12 mm / M10, height 75-88 mm, ⌀ 50 mm
Order no.
72850
Application:
AMF screw jacks with aluminium base are designed for vertical applications.
Note:
F max. until max. 350 mm total height ensured. In addition, there is a risk of buckling.
Suitable attachments: no. 6440, 6440G, 6441, 6442, 6442G/M10, 6443/14 and 6445
Suitable support: no. 6400FB, 6400FY
Do not adjust screw jack under load!
Advantage:
The screw jack thread is protected from the penetration of chips by the scraper. Modular design with aluminium spacer elements 6401Z possible.
| Order no. | 72850 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 75 |
| Max. height [mm] | 88 |
| Max. support force [kN] | 30 |
| Special features | With chip guard plate |
