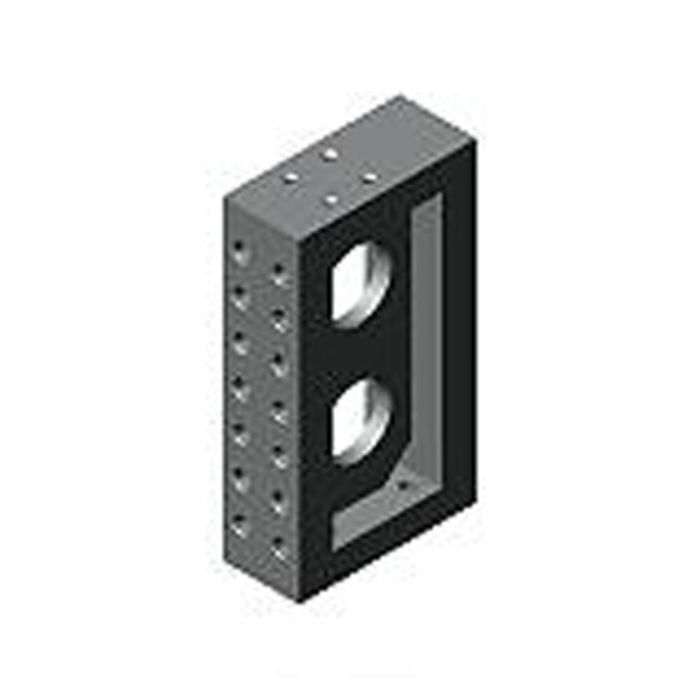

Angle block, double-row Dist. fr. face to loc. holes 1 55 mm, dist. fr. face to loc. holes 2 155 mm, size 210x98x400 mm, dia. drilling 22 mm, grid 50 mm
Order no. Article no. Dist. fr. face to loc. holes A1 ±0.01 Dist. fr. face to loc. holes A2 ±0.01 dia. D F7 R ±0.01 Right angle deviation Weight Availability Your Price 88765 6363-12-064 50 130 16 40 0,015 20
88773 6363-16-064 55 155 22 50 0,02 32
Order no. b E E1 F H L L1 L2 L3 m dia. S T U U1 88765 78 12 10 30 320 180 50 19,5 40 M12 13 35 110 260 88773 98 13 13 35 400 210 55 24,0 50 M16 17 35 140 330
More Information Order no. 88773
