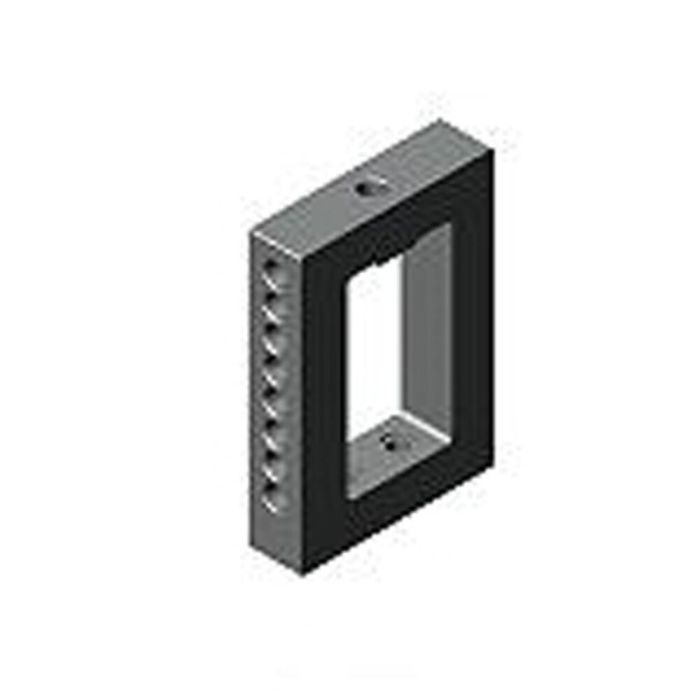

Angle block, single-row Dist. fr. face to loc. holes 1 50 mm, dist. fr. face to loc. holes 2 55 mm, size 140x38x200 mm, dia. drilling 16 mm, grid 40 mm
Order no. Article no. Dist. fr. face to loc. holes A1 ±0.01 Dist. fr. face to loc. holes A2 ±0.01 dia. D F7 R ±0.01 Right angle deviation Weight Availability Your Price 88740 6363-12-063 50 90 16 40 0,01 5
88757 6363-16-063 55 105 22 50 0,01 8,5
Order no. b E E1 F H L L1 L2 m dia. S dia. S1 T t1 U U1 88740 38 12 10 28 200 140 70 19 M12 13 20 32 30 76 140 88757 48 13 13 33 250 160 80 24 M16 17 26 35 35 90 180
More Information Order no. 88740
Pimcore content from synoa_downloadsnk_downloads_tab_top
Area Language File name Type File size
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Similar products
Angle block, double-row Nr. 88765 Dist. fr. face to loc. holes 1 50 mm, dist. fr. face to loc. holes 2 130 mm, size 180x78x320 mm, dia. drilling 16 mm, grid 40 mm
