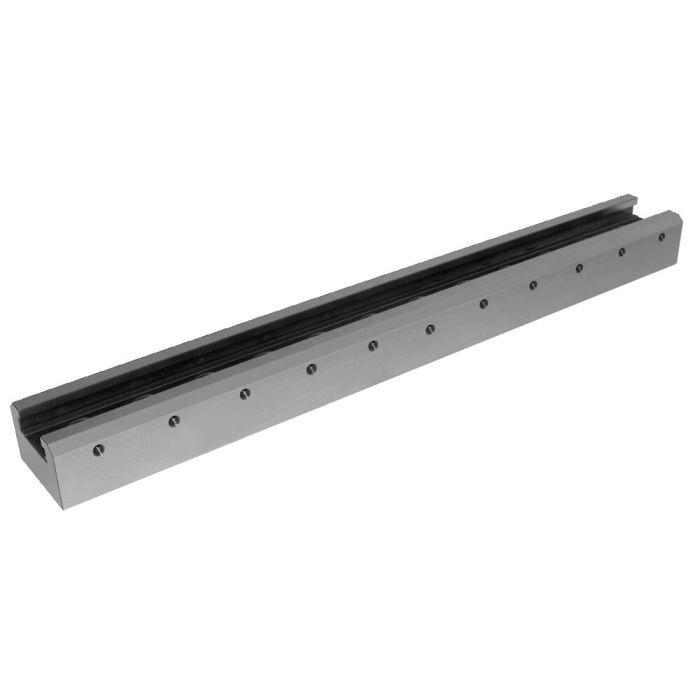

Base element

Jaw width 80 mm, bore spacing 50 mm, length 350 mm

Order no.

304766

Order no.	Size	Length [mm]	Clamping force [kN]	Weight [kg]
304766	80-350-050	350	15	10,7
304782	80-500-050	500	15	15,5
304808	80-700-050	700	15	21,7

Order no.	A	b	C	D	dia. E F7	F	Øg	H	H1	dia. l	k	L	N H7	R	S	T
304766	350	90	60	200	22	13	17	17	17	25	75	25	18	50	68	16
304782	500	90	60	350	22	13	17	17	17	25	75	25	18	50	68	16
304808	700	90	60	400	22	13	17	17	17	25	150	50	18	50	68	91
