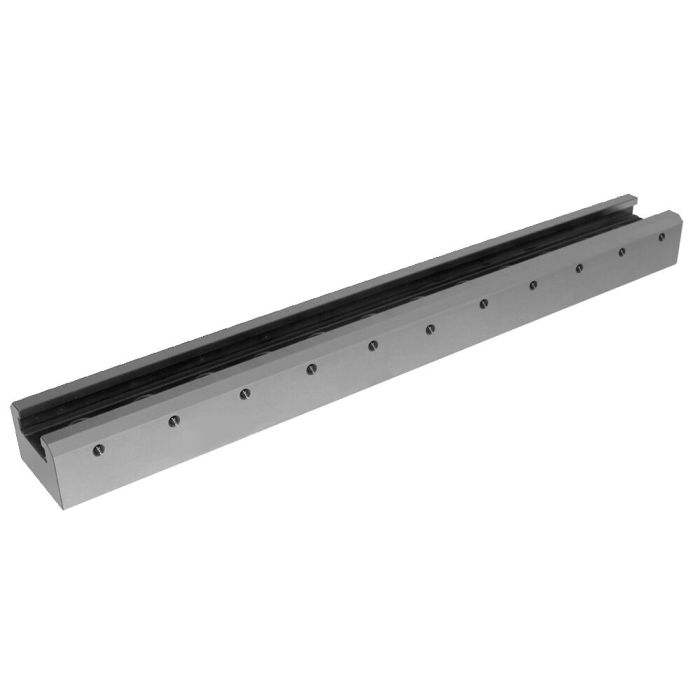

Base element

Jaw width 80 mm, bore spacing 40 mm, length 350 mm

Order no.

304774

Order no.	Size	Length [mm]	Clamping force [kN]	Weight [kg]
304774	80-350-040	350	15	11,1
304816	80-700-040	700	15	22,1
304824	80-500-040	500	15	15,8

Order no.	A	b	C	D	dia. E F7	F	Øg	H	H1	dia. l	k	L	N H7	R	S	T
304774	350	90	60	200	16	13	13	12,5	12,5	19	75	35	18	40	58	26
304816	700	90	60	400	16	13	13	12,5	12,5	19	150	30	18	40	58	101
304824	500	90	60	360	16	13	13	12,5	12,5	19	70	30	18	40	58	21
