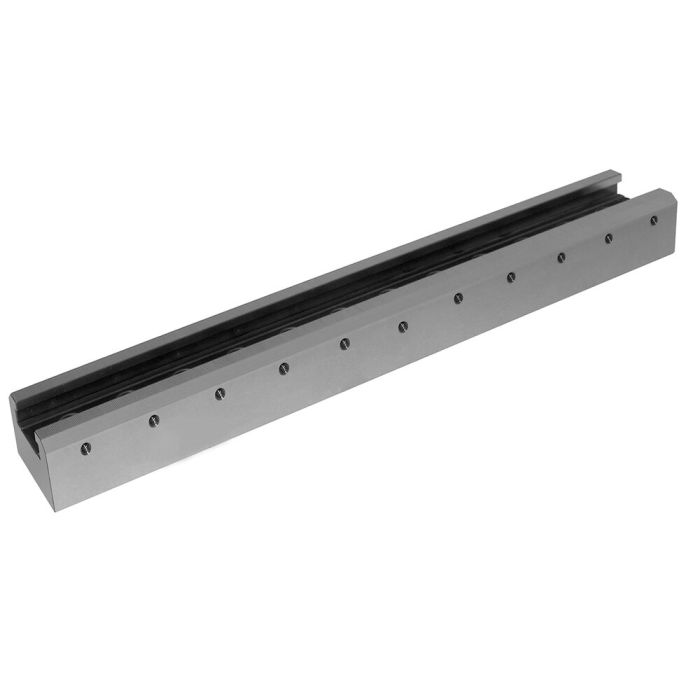

Base element

Jaw width 50 mm, length 500 mm

Order no.

304899

Order no.	Size	Length [mm]	Clamping force [kN]	Weight [kg]
304873	50-250-040	250	12	3,3
304899	50-500-040	500	12	6,6
304923	50-320-040	320	12	4,2
304964	50-700-040	700	12	9,3

Order no.	A	b	C	D	dia. E F7	F	Øg	H	H1	dia. l	k	L	N H7	R	S	T
304873	250	60	40	120	16	10	13	12,5	12,5	19	65	25	18	40	58	16
304899	500	60	40	360	16	10	13	12,5	12,5	19	70	30	18	40	58	21
304923	320	60	40	200	16	10	13	12,5	12,5	19	60	20	18	40	58	11
304964	700	60	40	400	16	10	13	12,5	12,5	19	150	30	18	40	58	101
