Base plate

Application:

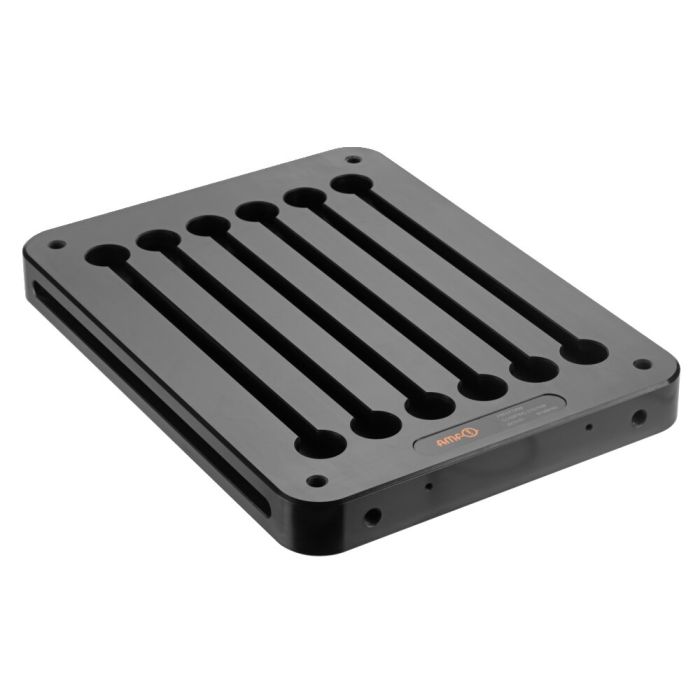

The base plate serves as a basis for the assembly of workpieces using the system elements. The pull-stud holders arranged on the underside enable set-up in parallel to the runtime.

Features:
- Base plate made of wear-resistant case-hardened steel, ground, burnished and hardened
- Drain holes for cooling lubricant in the clamping slots, as well as drain groove on the underside
- Pull-stud holders size 20 on the underside of the plate
- M12 support thread on the front and on the top of the plate
- M8 thread on the front side for fastening handles
- Longitudinal clamping slots for fastening with clamping jaws, e.g. no. 6325

Note:
Observe tightening torques. Handles are not supplied as standard.

On request:
Additional plate dimensions available on request.
