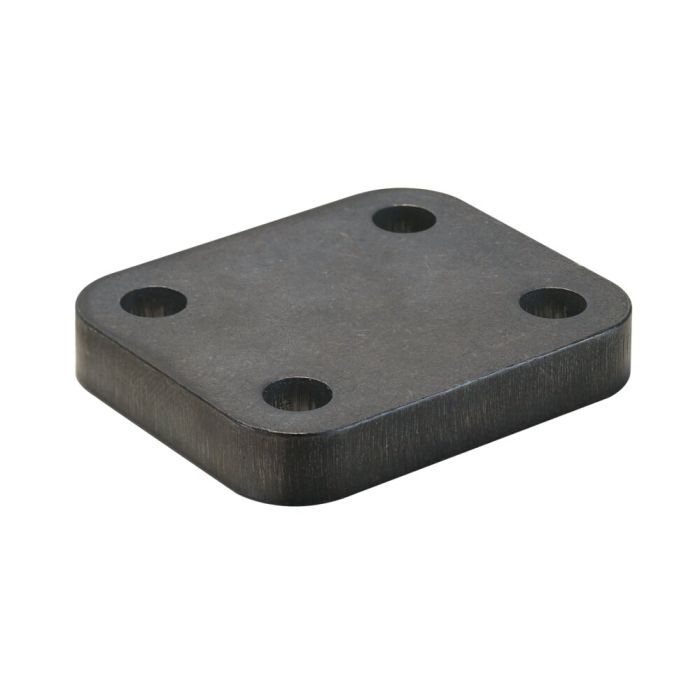

Base plate

Size 8, dimensions 65x70x8 mm, bore diameter 8,5 mm

Order no.

90969

Order no.	Size	C	dia. D	m	N	P	S	Weight [g]
90944	2+4	25	6,5	35	50	40	8	86
90951	6	40	8,5	30	50	60	8	211
90969	8	50	8,5	45	65	70	8	333
90977	10	60	10,5	50	70	80	10	406
