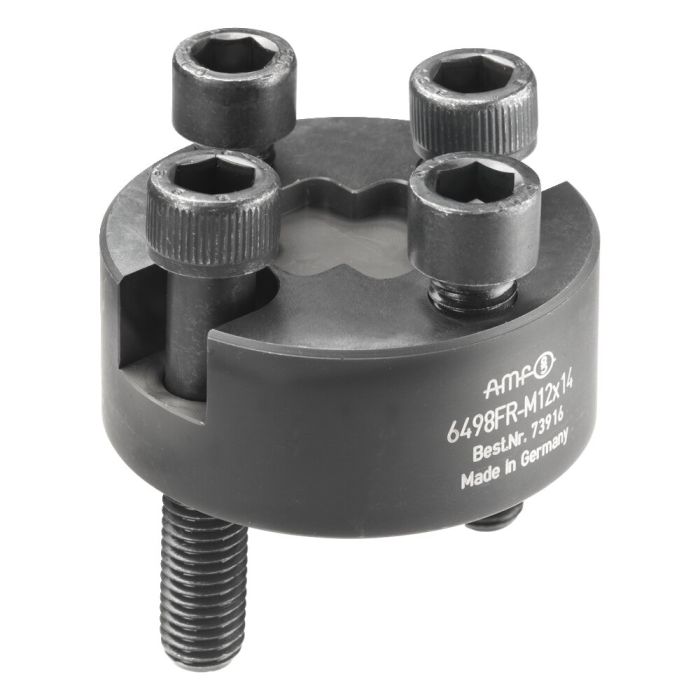

Base plate, round
Size M12x14, slot 14 mm, ⌀ 68 mm, height 30 mm
Order no.
73916
Application:
Used in conjunction with side clamp no. 6498 to clamp across and along the table groove. The size M16x18 fits properly for use on the M16 grid plate.
Note:
The flat T-nut no. 6322A-18 (71597) allows the side clamp to be connected exactly to the round base plate. The base plate can be positioned exactly on the machine table using the flat T-nuts 6322A or 6322B.
Advantage:
- Increase in the workpiece mounting surface.
On request:
Special versions (dimension H ±0.01) are available.
* Not a stock item
| Order no. | 73916 |
|---|---|
| Product type | Edge clamps |
| Slot [mm] | 14 |
