| Order no. | Slot | A | E | H | k | Packaging
unit | Weight
[g] | Availability | Your Price |
| 84483 | 32 | 31,7 | 50 | 40 | 20 | - | 630 | | |
| 84491 | 42 | 41,6 | 65 | 52 | 26 | - | 1400 | | |
| 84509 | 6 | 5,7 | 10 | 8 | 4 | 25 | 4 | | |
| 84517 | 8 | 7,7 | 13 | 10 | 6 | 25 | 10 | | |
| 84525 | 10 | 9,7 | 15 | 12 | 6 | 50 | 16 | | |
| 84533 | 12 | 11,7 | 18 | 14 | 7 | 50 | 27 | | |
| 84541 | 14 | 13,7 | 22 | 16 | 8 | 50 | 50 | | |
| 84558 | 16 | 15,7 | 25 | 18 | 9 | 25 | 70 | | |
| 84566 | 18 | 17,7 | 28 | 20 | 10 | 25 | 95 | | |
| 84574 | 20 | 19,7 | 32 | 24 | 12 | 25 | 150 | | |
| 84582 | 22 | 21,7 | 35 | 28 | 14 | 25 | 210 | | |
| 84590 | 24 | 23,7 | 40 | 32 | 16 | 10 | 300 | | |
| 84608 | 28 | 27,7 | 44 | 36 | 18 | - | 430 | | |
| 84632 | 36 | 35,6 | 54 | 44 | 22 | - | 800 | | |
| | | | | | | | | |
* Size not included in DIN, dimensions similar to DIN
More Information | Order no. | 84509 |
|---|

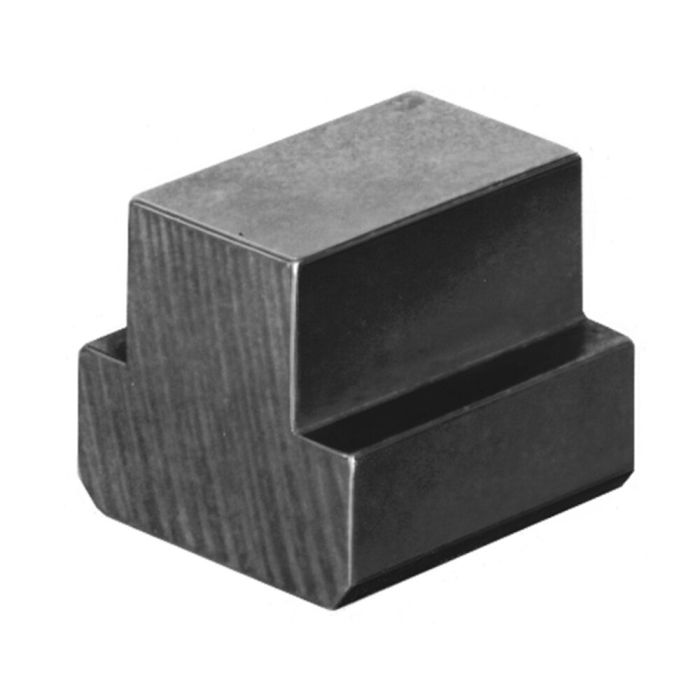

| Product type | Nuts for T-slots |
|---|
| Slot [mm] | 6 |
|---|
