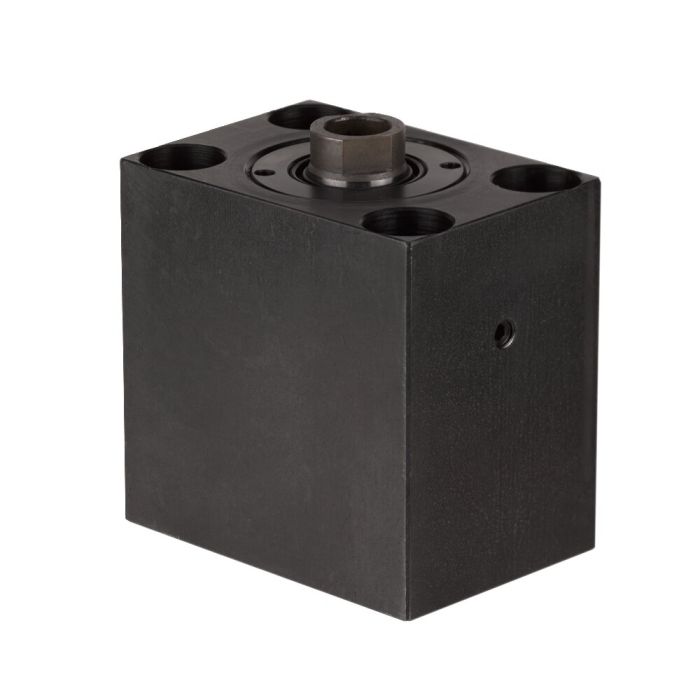

Block cylinder with O-ring connection on base Max. operating pressure 500 bar, max. clamping force 98 kN, max. stroke 100 mm, double acting
Order no. Article no. Push force at 100 bar Push force at 500 bar Pull force at 100 bar Pull force Stroke H Vol. push Vol. pull Piston dia. Weight Availability Your Price 294884 6926D-78-20 19,6 98,0 11,6 58,0 25 49,0 29,0 50 4380
298307 6926D-50-21 12,5 62,5 7,6 38,0 50 62,5 38,0 40 3590
298497 6926D-32-21 8,0 40,0 4,9 24,5 50 40,0 24,5 32 2630
298513 6926D-20-21 5,0 25,0 2,9 14,5 50 25,0 14,5 25 1800
298521 6926D-12-20 3,1 15,5 1,6 8,0 16 5,0 3,2 20 880
319517 6926D-50-20 12,5 62,5 7,6 38,0 25 31,4 19,1 40 2760
328138 6926D-125-25 31,1 155,5 18,6 93,0 100 311,0 186,0 63 14500
328286 6926D-8-21 2,0 10,0 1,2 6,0 50 10,0 6,0 16 1330
328302 6926D-8-25 2,0 10,0 1,2 6,0 100 20,0 12,0 16 2200
328328 6926D-12-25 3,1 15,5 1,6 8,0 100 31,0 20,0 20 2300
328344 6926D-20-25 5,0 25,0 2,9 14,5 100 50,0 29,0 25 3100
328369 6926D-32-25 8,0 40,0 4,9 24,5 100 80,0 49,0 32 4500
328377 6926D-12-21 3,1 15,5 1,6 8,0 50 15,5 10,0 20 1380
328385 6926D-50-25 12,5 62,5 7,6 38,0 100 125,0 76,0 40 5800
328401 6926D-78-21 19,6 98,0 11,6 58,0 50 98,0 58,0 50 5520
328427 6926D-78-25 19,6 98,0 11,6 58,0 100 196,0 116,0 50 8500
328443 6926D-125-20 31,1 155,5 18,6 93,0 30 93,5 55,8 63 7900
328468 6926D-125-21 31,1 155,5 18,6 93,0 63 196,0 117,0 63 9280
330522 6926D-20-20 5,0 25,0 2,9 14,5 20 9,8 5,8 25 1220
442319 6926D-32-20 8,0 40,0 4,9 24,5 25 20,0 12,2 32 1990
454793 6926D-8-20 2,0 10,0 1,2 6,0 16 3,2 1,9 16 820
Order no. A b C dia. E L N x depth dia. p Q ØR x T S U dia. W OR-1 294884 100 90 75 32 10 M20x30 6,0 76 10,8x1,1 27 45 13,0 161554 298307 85 104 63 25 10 M16x25 6,0 63 9,8x1,1 22 40 10,5 537969 298497 75 100 55 20 10 M12x15 5,0 55 9,8x1,1 17 35 10,5 537969 298513 65 94 45 16 7 M10x15 4,0 50 9,8x1,1 13 30 8,5 537969 298521 60 61 35 14 7 M8x15 3,5 40 9,8x1,1 10 22 6,5 537969 319517 85 79 63 25 10 M16x25 6,0 63 9,8x1,1 22 40 10,5 537969 328138 125 172 95 40 14 M27x40 8,0 95 13,8x1,5 36 65 17,0 492264 328286 60 91 35 10 6 M6x12 3,5 40 9,8x1,1 8 22 6,5 537969 328302 60 144 35 10 6 M6x12 3,5 40 9,8x1,1 8 22 6,5 537969 328328 60 148 35 14 7 M8x15 3,5 40 9,8x1,1 10 22 6,5 537969 328344 65 144 45 16 7 M10x15 4,0 50 9,8x1,1 13 30 8,5 537969 328369 75 150 55 20 10 M12x15 5,0 55 9,8x1,1 17 35 10,5 537969 328377 60 95 35 14 7 M8x15 3,5 40 9,8x1,1 10 22 6,5 537969 328385 85 154 63 25 10 M16x25 6,0 63 9,8x1,1 22 40 10,5 537969 328401 100 115 75 32 10 M20x30 6,0 76 10,8x1,1 27 45 13,0 161554 328427 100 165 75 32 10 M20x30 6,0 76 10,8x1,1 27 45 13,0 161554 328443 125 102 95 40 14 M27x40 8,0 95 13,8x1,5 36 65 17,0 492264 328468 125 135 95 40 14 M27x40 8,0 95 13,8x1,5 36 65 17,0 492264 330522 65 64 45 16 7 M10x15 4,0 50 9,8x1,1 13 30 8,5 537969 442319 75 75 55 20 10 M12x15 5,0 55 9,8x1,1 17 35 10,5 537969 454793 60 56 35 10 6 M6x12 3,5 40 9,8x1,1 8 22 6,5 537969
Design:
Features:
Note:
On request:
More Information Order no. 328427 Max. clamping force [kN] 98 Max. operating pressure [bar] 500 Type of actuation Double acting Stroke [mm] 100
