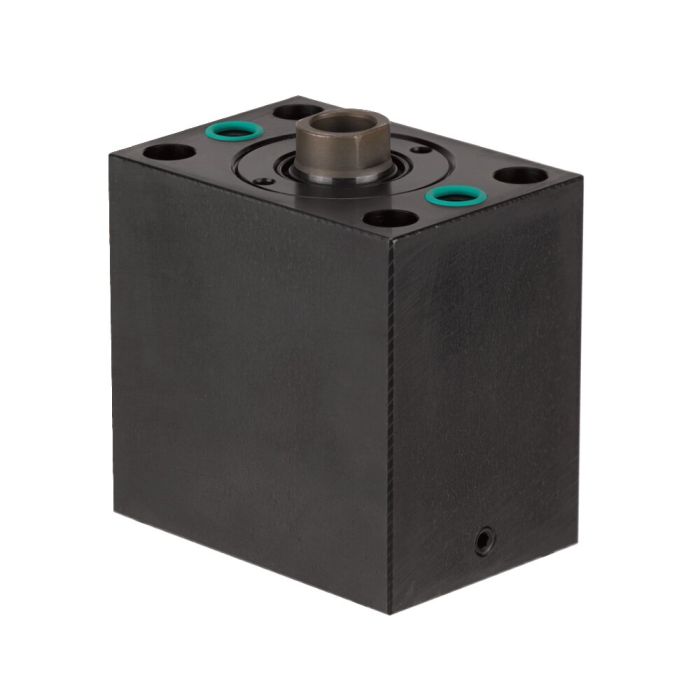

Block cylinder with O-ring connection on rod side Max. operating pressure 500 bar, max. clamping force 10 kN, max. stroke 50 mm, double acting
Order no. Article no. Push force at 100 bar Push force at 500 bar Pull force at 100 bar Pull force Stroke H Vol. push Vol. pull Piston dia. Weight Availability Your Price 299339 6926D-32-30 8,0 40,0 4,9 24,5 25 20,0 12,2 32 1990
299487 6926D-20-30 5,0 25,0 2,9 14,5 20 9,8 5,8 25 1220
328153 6926D-8-35 2,0 10,0 1,2 6,0 100 20,0 12,0 16 2200
328179 6926D-12-35 3,1 15,5 1,6 8,0 100 31,0 20,0 20 2300
328195 6926D-20-35 5,0 25,0 2,9 14,5 100 50,0 29,0 25 3100
328211 6926D-50-35 12,5 62,5 7,6 38,0 100 125,0 76,0 40 5800
328237 6926D-78-35 19,6 98,0 11,6 58,0 100 196,0 116,0 50 8500
328252 6926D-125-30 31,1 155,5 18,6 93,0 30 93,5 55,8 63 7900
328278 6926D-125-31 31,1 155,5 18,6 93,0 63 196,0 117,0 63 9280
328294 6926D-125-35 31,1 155,5 18,6 93,0 100 311,0 186,0 63 14500
328393 6926D-12-31 3,1 15,5 1,6 8,0 50 15,5 10,0 20 1380
328419 6926D-50-31 12,5 62,5 7,6 38,0 50 62,5 38,0 40 3590
334847 6926D-78-31 19,6 98,0 11,6 58,0 50 98,0 58,0 50 5520
347575 6926D-20-31 5,0 25,0 2,9 14,5 50 25,0 14,5 25 1800
349696 6926D-8-30 2,0 10,0 1,2 6,0 16 3,2 1,9 16 820
452821 6926D-32-31 8,0 40,0 4,9 24,5 50 40,0 24,5 32 2630
454975 6926D-32-35 8,0 40,0 4,9 24,5 100 80,0 49,0 32 4500
456160 6926D-50-30 12,5 62,5 7,6 38,0 25 31,4 19,1 40 2760
461434 6926D-12-30 3,1 15,5 1,6 8,0 16 5,0 3,2 20 880
477554 6926D-8-31 2,0 10,0 1,2 6,0 50 10,0 6,0 16 1330
489567 6926D-78-30 19,6 98,0 11,6 58,0 25 49,0 29,0 50 4380
Order no. A b C dia. E L N x depth dia. p Q ØR x T S U dia. W OR-1 299339 75 75 55 20 10 M12x15 5,0 55 9,8x1,1 17 35 10,5 537969 299487 65 64 45 16 7 M10x15 4,0 50 9,8x1,1 13 30 8,5 537969 328153 60 144 35 10 6 M6x12 3,5 40 9,8x1,1 8 22 6,5 537969 328179 60 148 35 14 7 M8x15 3,5 40 9,8x1,1 10 22 6,5 537969 328195 65 144 45 16 7 M10x15 4,0 50 9,8x1,1 13 30 8,5 537969 328211 85 154 63 25 10 M16x25 6,0 63 9,8x1,1 22 40 10,5 537969 328237 100 165 75 32 10 M20x30 6,0 76 10,8x1,1 27 45 13,0 161554 328252 125 102 95 40 14 M27x40 8,0 95 13,8x1,5 36 65 17,0 492264 328278 125 135 95 40 14 M27x40 8,0 95 13,8x1,5 36 65 17,0 492264 328294 125 172 95 40 14 M27x40 8,0 95 13,8x1,5 36 65 17,0 492264 328393 60 95 35 14 7 M8x15 3,5 40 9,8x1,1 10 22 6,5 537969 328419 85 104 63 25 10 M16x25 6,0 63 9,8x1,1 22 40 10,5 537969 334847 100 115 75 32 10 M20x30 6,0 76 10,8x1,1 27 45 13,0 161554 347575 65 94 45 16 7 M10x15 4,0 50 9,8x1,1 13 30 8,5 537969 349696 60 56 35 10 6 M6x12 3,5 40 9,8x1,1 8 22 6,5 537969 452821 75 100 55 20 10 M12x15 5,0 55 9,8x1,1 17 35 10,5 537969 454975 75 150 55 20 10 M12x15 5,0 55 9,8x1,1 17 35 10,5 537969 456160 85 79 63 25 10 M16x25 6,0 63 9,8x1,1 22 40 10,5 537969 461434 60 61 35 14 7 M8x15 3,5 40 9,8x1,1 10 22 6,5 537969 477554 60 91 35 10 6 M6x12 3,5 40 9,8x1,1 8 22 6,5 537969 489567 100 90 75 32 10 M20x30 6,0 76 10,8x1,1 27 45 13,0 161554
Design:
Features:
Note: Untoleranced dimensions are to DIN ISO 2768 medium.
On request:
More Information Order no. 477554 Max. clamping force [kN] 10 Max. operating pressure [bar] 500 Type of actuation Double acting Stroke [mm] 50
