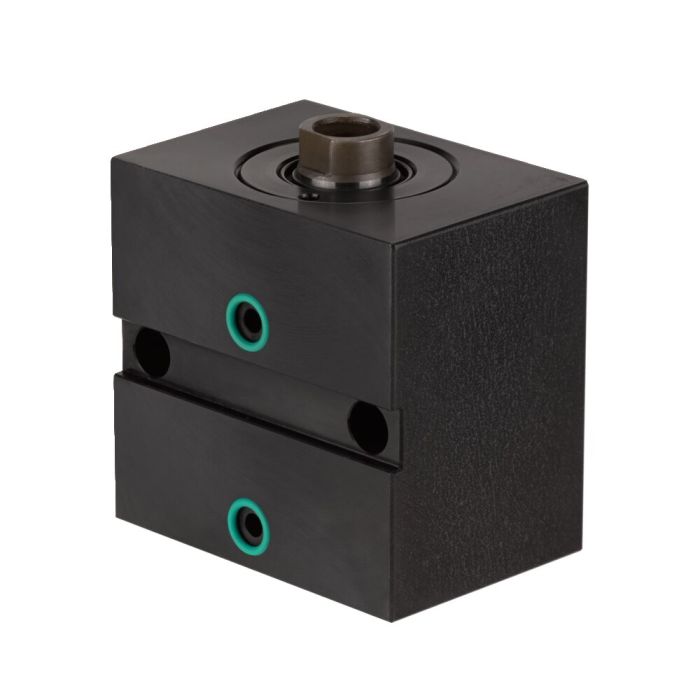

Block cylinder with O-ring connection on side Max. operating pressure 500 bar, max. clamping force 155,5 kN, max. stroke 63 mm, double acting
Order no. Article no. Push force at 100 bar Push force at 500 bar Pull force at 100 bar Pull force Stroke H Vol. push Vol. pull Piston dia. Weight Availability Your Price 278903 6926D-32-10 8,0 40,0 4,9 24,5 25 20,0 12,2 32 2200
319491 6926D-20-11 5,0 25,0 2,9 14,5 50 25,0 14,5 25 1980
328146 6926D-8-15 2,0 10,0 1,2 6,0 100 20,0 12,0 16 2200
328161 6926D-12-15 3,1 15,5 1,6 8,0 100 31,0 20,0 20 2300
328187 6926D-78-11 19,6 98,0 11,6 58,0 50 98,0 58,0 50 5940
328203 6926D-78-15 19,6 98,0 11,6 58,0 100 196,0 116,0 50 8500
328229 6926D-125-10 31,1 155,5 18,6 93,0 30 93,5 55,8 63 8440
328245 6926D-125-11 31,1 155,5 18,6 93,0 63 196,0 117,0 63 11041
328260 6926D-125-15 31,1 155,5 18,6 93,0 100 311,0 186,0 63 14500
328310 6926D-12-10 3,1 15,5 1,6 8,0 16 5,0 3,2 20 950
328336 6926D-20-15 5,0 25,0 2,9 14,5 100 50,0 29,0 25 3100
328351 6926D-78-10 19,6 98,0 11,6 58,0 25 49,0 29,0 50 4700
328435 6926D-8-11 2,0 10,0 1,2 6,0 50 10,0 6,0 16 1420
330332 6926D-20-10 5,0 25,0 2,9 14,5 20 9,8 5,8 25 1340
349654 6926D-50-15 12,5 62,5 7,6 38,0 100 125,0 76,0 40 5800
441964 6926D-50-10 12,5 62,5 7,6 38,0 25 31,4 19,1 40 2970
443143 6926D-32-11 8,0 40,0 4,9 24,5 50 40,0 24,5 32 2910
455279 6926D-50-11 12,5 62,5 7,6 38,0 50 62,5 38,0 40 3860
476895 6926D-8-10 2,0 10,0 1,2 6,0 16 3,2 1,9 16 880
485458 6926D-32-15 8,0 40,0 4,9 24,5 100 80,0 49,0 32 4500
487900 6926D-12-11 3,1 15,5 1,6 8,0 50 15,5 10,0 20 1470
Order no. A b C dia. E F k L m N x depth dia. p Q ØR x T S dia. W X Y Z OR-1 278903 75 75 55 20 38 - 10 10 M12x15 5 55 9,8x1,1 17 10,5 3 12 25 537969 319491 65 94 45 16 33 26 7 7,5 M10x15 4 50 9,8x1,1 13 8,5 2 10 21 537969 328146 60 144 35 10 30 24,5 6 7 M6x12 3,5 30 9,8x1,1 8 6,5 2 8 20,5 537969 328161 60 148 35 14 30 26 7 7,5 M8x15 3,5 40 9,8x1,1 10 6,5 2 8 20,5 537969 328187 100 115 75 32 44 30 10 13 M20x30 6 76 10,8x1,1 27 13 5 16 29,5 161554 328203 100 165 75 32 44 30 10 13 M20x30 6 76 10,8x1,1 27 13 5 16 29,5 161554 328229 125 102 95 40 50 - 14 16 M27x40 8 95 13,8x1,5 36 17 5 20 32 492264 328245 125 135 95 40 50 41 14 16 M27x40 8 95 13,8x1,5 36 17 5 20 32 492264 328260 125 172 95 40 50 41 14 16 M27x40 8 95 13,8x1,5 36 17 5 20 32 492264 328310 60 61 35 14 30 - 7 7,5 M8x15 3,5 40 9,8x1,1 10 6,5 2 8 20,5 537969 328336 65 144 45 16 33 26 7 7,5 M10x15 4 50 9,8x1,1 13 8,5 2 10 21 537969 328351 100 90 75 32 44 - 10 13 M20x30 6 76 10,8x1,1 27 13 5 16 29,5 161554 328435 60 91 35 10 30 24,5 6 7 M6x12 3,5 30 9,8x1,1 8 6,5 2 8 20,5 537969 330332 65 64 45 16 33 - 7 7,5 M10x15 4 50 9,8x1,1 13 8,5 2 10 21 537969 349654 85 154 63 25 40 27 10 10 M16x25 6 63 9,8x1,1 22 10,5 3 12 27 537969 441964 85 79 63 25 40 - 10 10 M16x25 6 63 9,8x1,1 22 10,5 3 12 27 537969 443143 75 100 55 20 38 27 10 10 M12x15 5 55 9,8x1,1 17 10,5 3 12 25 537969 455279 85 104 63 25 40 27 10 10 M16x25 6 63 9,8x1,1 22 10,5 3 12 27 537969 476895 60 56 35 10 30 - 6 7 M6x12 3,5 30 9,8x1,1 8 6,5 2 8 20,5 537969 485458 75 150 55 20 38 27 10 10 M12x15 5 55 9,8x1,1 17 10,5 3 12 25 537969 487900 60 95 35 14 30 26 7 7,5 M8x15 3,5 40 9,8x1,1 10 6,5 2 8 20,5 537969
Design:
Features:
Note:
On request:
More Information Order no. 328245 Max. clamping force [kN] 155.5 Max. operating pressure [bar] 500 Type of actuation Double acting Stroke [mm] 63
Pimcore content from synoa_downloadsnk_downloads_tab_top
Area Language File name Type File size
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Similar products
Block Cylinder Nr. 62604 Max. operating pressure 500 bar, max. clamping force 155,5 kN, max. stroke 50 mm, double acting Block Cylinder Nr. 62786 Max. operating pressure 500 bar, max. clamping force 155,5 kN, max. stroke 50 mm, double acting
