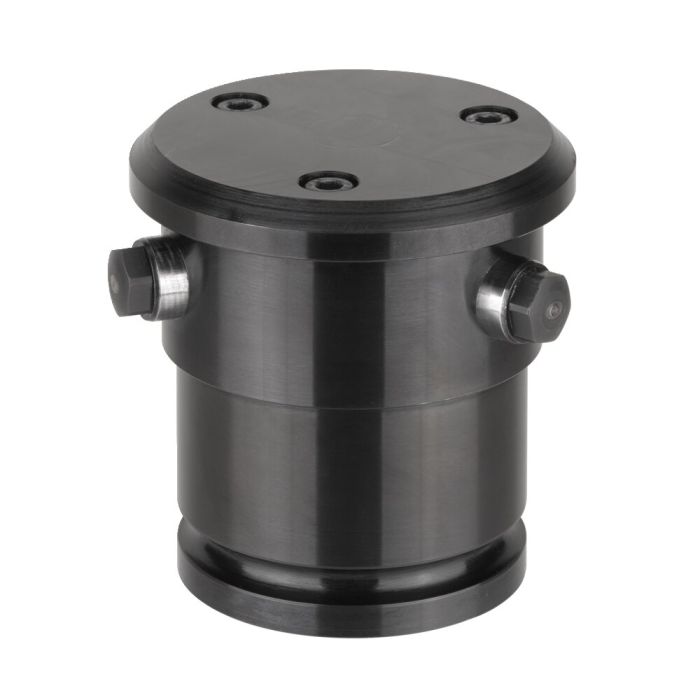

Centring clamp MAXI with three clamping points
Max. clamping force 17,5 kN, stroke 5,2 mm, clamping Ø 83-91 mm
Order no.
328856
You do not have access to availabilities (Ampel). Please contact us!
doppelt wirkend,
max. Betriebsdruck 350 bar,
min. Betriebsdruck 10 bar.
| Order no. | Article no. | Clamping force at 100 bar * [kN] | Clamping force at 350 bar* [kN] | Clamping points | Clamping Ø N -1 | Stroke H [mm] | Repeatability [mm] | Q max. [l/min] | Weight [g] | Availability | Your Price |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 327593 | 6974-3076 | 5,0 | 17,5 | 3 | 76-84 | 5,2 | ±0,02 | 1,5 | 1754 | | |
| 328773 | 6974-3054 | 3,2 | 11,2 | 3 | 54-62 | 4,0 | ±0,02 | 1,0 | 1754 | | |
| 328815 | 6974-3061 | 3,2 | 11,2 | 3 | 61-69 | 4,0 | ±0,02 | 1,0 | 1754 | | |
| 328849 | 6974-3068 | 3,2 | 11,2 | 3 | 68-76 | 4,0 | ±0,02 | 1,0 | 1754 | | |
| 328856 | 6974-3083 | 5,0 | 17,5 | 3 | 83-91 | 5,2 | ±0,02 | 1,5 | 1754 | | |
| 328898 | 6974-3090 | 5,0 | 17,5 | 3 | 90-98 | 5,2 | ±0,02 | 1,5 | 1754 | | |
| 329003 | 6974-3098 | 8,0 | 28,0 | 3 | 98-109 | 6,9 | ±0,02 | 2,0 | 3432 | | |
| 329045 | 6974-3109 | 8,0 | 28,0 | 3 | 109-120 | 6,9 | ±0,02 | 2,0 | 3603 | | |
| 329086 | 6974-3119 | 8,0 | 28,0 | 3 | 119-130 | 6,9 | ±0,02 | 2,0 | 3773 | | |
| Order no. | A | dia. B | C | dia. D -0,4 | Bolt Ø D1 [mm] | dia. E g6/h7 | F | G | G1 | J | k | L | L1 | dia. M | O | P | R | S | SW | dia. T | dia. U | dia. V | W | dia. X | Y | Y1 | Z | OR-1 O-ring Order No. | OR-2 O-ring Order No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 327593 | 32,5 | 65 | 15,6 | 75,9 | 14 | 25 | 54 | M8x16 | M6 | 9 | 6 | 77,0 | 56 | 60 | 41 | 68,0 | 3,1 | 0,5 | 11 | 30,0 | 14 | 4 | 22,0 | 9,8 | 1,1 | 1,5 | 6 | 537969 | 321265 |
| 328773 | 22,9 | 45 | 11,3 | 53,9 | 12 | 16 | 40 | M6x12 | M6 | 8 | 6 | 65,0 | 45 | 45 | 0 | 57,0 | 2,6 | 0 | 10 | 20,5 | 8 | 3 | 16,8 | 7,7 | 1,1 | 1,3 | 6 | 409508 | 537985 |
| 328815 | 22,9 | 45 | 11,3 | 60,9 | 12 | 16 | 40 | M6x12 | M6 | 8 | 6 | 65,0 | 45 | 45 | 0 | 57,0 | 2,6 | 0 | 10 | 20,5 | 8 | 3 | 16,8 | 7,7 | 1,1 | 1,3 | 6 | 409508 | 537985 |
| 328849 | 22,9 | 45 | 11,3 | 67,9 | 12 | 16 | 40 | M6x12 | M6 | 8 | 6 | 65,0 | 45 | 45 | 0 | 57,0 | 2,6 | 0 | 10 | 20,5 | 8 | 3 | 16,8 | 7,7 | 1,1 | 1,3 | 6 | 409508 | 537985 |
| 328856 | 32,5 | 65 | 15,6 | 82,9 | 14 | 25 | 54 | M8x16 | M6 | 9 | 6 | 77,0 | 56 | 60 | 41 | 68,0 | 3,1 | 0,5 | 11 | 30,0 | 14 | 4 | 22,0 | 9,8 | 1,1 | 1,5 | 6 | 537969 | 321265 |
| 328898 | 32,5 | 65 | 15,6 | 89,9 | 14 | 25 | 54 | M8x16 | M6 | 9 | 6 | 77,0 | 56 | 60 | 41 | 68,0 | 3,1 | 0,5 | 11 | 30,0 | 14 | 4 | 22,0 | 9,8 | 1,1 | 1,5 | 6 | 537969 | 321265 |
| 329003 | 42,5 | 85 | 19,1 | 97,9 | 18 | 32 | 67 | M10x20 | M8 | 10 | 6 | 91,0 | 64 | 74 | 47 | 80,0 | 3,6 | 2,5 | 13 | 36,6 | 16 | 5 | 27 | 10,8 | 1,1 | 1,3 | 6 | 542464 | 542308 |
| 329045 | 42,5 | 85 | 19,1 | 108,9 | 18 | 32 | 67 | M10x20 | M8 | 10 | 6 | 91,0 | 64 | 74 | 47 | 80,0 | 3,6 | 2,5 | 13 | 36,6 | 16 | 5 | 27 | 10,8 | 1,1 | 1,3 | 6 | 542464 | 542308 |
| 329086 | 42,5 | 85 | 19,1 | 118,9 | 18 | 32 | 67 | M10x20 | M8 | 10 | 6 | 91,0 | 64 | 74 | 47 | 80,0 | 3,6 | 2,5 | 13 | 36,6 | 16 | 5 | 27 | 10,8 | 1,1 | 1,3 | 6 | 542464 | 542308 |
| Order no. | 328856 |
|---|---|
| Product type | Centring clamps |
| Max. clamping force [kN] | 17.5 |
| Max. operating pressure [bar] | 350 |
| Stroke [mm] | 5.2 |
| Clamping points | 3 |
