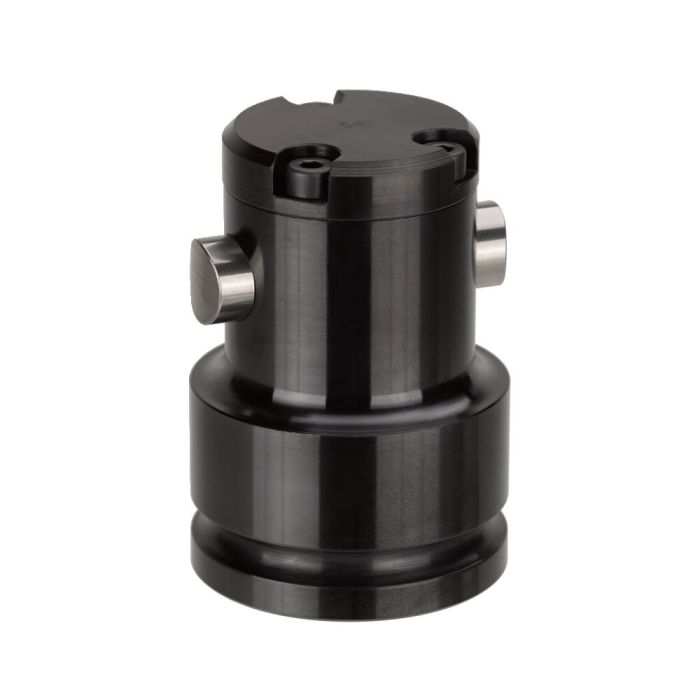

Centring clamp MINI with two clamping points Max. clamping force 14 kN, stroke 3 mm, clamping Ø 25-29 mm
Order no. Article no. Clamping force Clamping force Clamping Clamping Ø N -1 Stroke H Repeatability Q max. Weight Availability Your Price 329052 6974-2036 4,0 14,0 2 36-40 3,0 ±0,02 1,0 574
329094 6974-2039 4,0 14,0 2 39-43 3,0 ±0,02 1,0 590
329136 6974-2042 4,0 14,0 2 42-46 3,0 ±0,02 1,0 604
329169 6974-2045 4,0 14,0 2 45-49 3,0 ±0,02 1,0 620
329177 6974-2048 4,0 14,0 2 48-52 3,0 ±0,02 1,0 635
329201 6974-2051 4,0 14,0 2 51-55 3,0 ±0,02 1,0 652
329243 6974-2025 4,0 14,0 2 25-29 3,0 ±0,02 1,0 440
329284 6974-2028 4,0 14,0 2 28-32 3,0 ±0,02 1,0 447
329326 6974-2032 4,0 14,0 2 32-36 3,0 ±0,02 1,0 456
Order no. dia. B C dia. D Bolt Ø D1 dia. E F G J k L L1 dia. M O P R S dia. T dia. U dia. V W dia. X Y Y1 Z OR-1 OR-2 329052 35 11,3 35,5 12 16 40 M6x12 8 6 65,0 45 45 27 57,0 2,6 4,0 20,5 8 3 16,8 7,7 1,1 1,3 6 409508 537985 329094 35 11,3 38,5 12 16 40 M6x12 8 6 65,0 45 45 27 57,0 2,6 4,0 20,5 8 3 16,8 7,7 1,1 1,3 6 409508 537985 329136 35 11,3 41,5 12 16 40 M6x12 8 6 65,0 45 45 27 57,0 2,6 4,0 20,5 8 3 16,8 7,7 1,1 1,3 6 409508 537985 329169 35 11,3 44,5 12 16 40 M6x12 8 6 65,0 45 45 27 57,0 2,6 4,0 20,5 8 3 16,8 7,7 1,1 1,3 6 409508 537985 329177 35 11,3 47,5 12 16 40 M6x12 8 6 65,0 45 45 27 57,0 2,6 4,0 20,5 8 3 16,8 7,7 1,1 1,3 6 409508 537985 329201 35 11,3 50,5 12 16 40 M6x12 8 6 65,0 45 45 27 57,0 2,6 4,0 20,5 8 3 16,8 7,7 1,1 1,3 6 409508 537985 329243 24 11,3 24,5 12 16 40 M6x12 8 6 66,5 45 45 27 62,5 2,6 4,0 20,5 8 3 16,8 7,7 1,1 1,3 6 409508 537985 329284 24 11,3 27,5 12 16 40 M6x12 8 6 66,5 45 45 27 62,5 2,6 4,0 20,5 8 3 16,8 7,7 1,1 1,3 6 409508 537985 329326 24 11,3 31,5 12 16 40 M6x12 8 6 66,5 45 45 27 62,5 2,6 4,0 20,5 8 3 16,8 7,7 1,1 1,3 6 409508 537985
Design:
Application:
More Information Order no. 329243 Product type Centring clamps Max. clamping force [kN] 14 Max. operating pressure [bar] 350 Stroke [mm] 3 Clamping points 2
