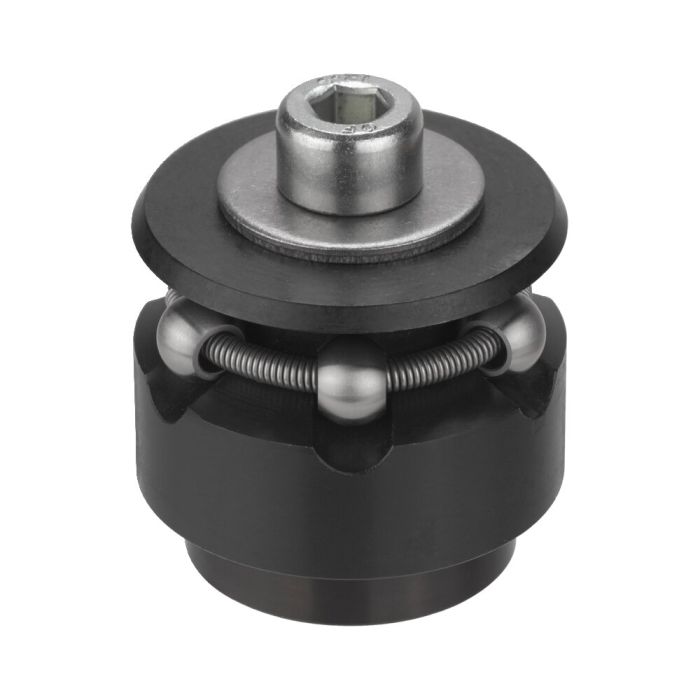

Centring clamp with ball ⌀ 11,7-14,2 mm, clamping range 3,2-3,9 mm, max. clamping force 0,5 kN
Order no. D min. D max. A min. A max. H P Weight Availability Your Price 373357 11,7 14,2 3,2 3,9 10,0 0,5 8,2
373365 14,5 18,5 8,6 9,8 14,2 3,5 19
373373 18,5 22,5 10,4 11,6 16,5 4,5 40
373381 22,5 26,5 12,9 14,1 19,6 5,0 73
373399 26,5 30,5 13,0 14,1 19,8 5,0 93
373407 30,5 38,5 11,8 14,1 23,2 5,0 118
373415 38,5 46,5 15,7 18,0 27,2 6,5 249
373423 46,5 54,5 15,7 18,0 27,1 6,5 342
373431 54,5 70,5 19,1 23,7 40,6 8,0 652
373449 70,5 86,5 23,7 28,3 46,1 10,0 1303
373456 86,5 102,5 25,6 30,3 51,2 10,0 1765
Order no. b C E f7 G HE I ±0,1 k L Q QD SW 373357 14,7 3,5 10 M4 2,0 3,5 1,5 1,3 3 2,5 3 373365 19,2 5,5 12 M4 2,5 4,5 2,0 2,3 3 4,0 3 373373 22,7 7,5 15 M5 3,5 5,5 2,5 2,3 3 4,0 4 373381 28,6 6,0 20 M6 3,5 7,0 3,0 2,3 3 4,0 5 373399 28,8 6,0 20 M6 3,5 7,0 3,0 2,3 3 4,0 5 373407 32,2 7,0 25 M6 3,5 9,0 4,0 4,6 3 8,0 5 373415 39,2 7,5 30 M8 4,5 11,0 4,0 4,6 6 8,0 6 373423 39,2 7,5 30 M8 6,5 11,0 4,0 4,6 6 8,0 6 373431 54,6 9,0 45 M10 6,5 15,0 5,0 9,2 6 16,0 8 373449 63,1 10,0 60 M12 6,5 17,0 5,0 9,2 6 16,0 10 373456 72,2 10,0 60 M16 6,5 25,0 5,0 9,2 6 16,0 14
Application:
Note:
Advantage:
Q = number of balls
More Information Order no. 373357 Product type Centring clamp Min. clamping diameter [mm] 11.7 Max. clamping diameter [mm] 14.2 Special features With ball
