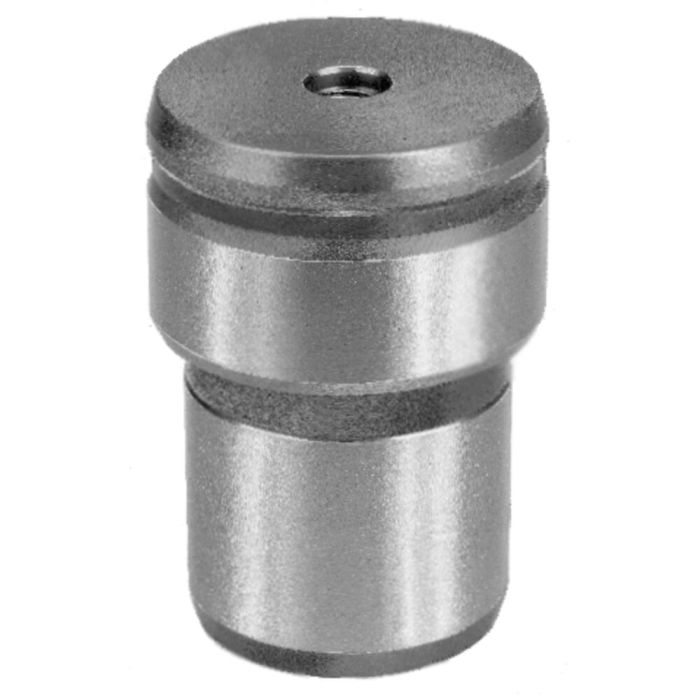

Centring pin, increased dia., with pilot dia.
For centring 6366 & 6367 & 6364 on machine pallets, dia. pin 60 mm, dia. pilot 50 mm
Order no.
87817
Application:
used for centring - clamping angle No. 6366 and No. 6367 - clamping column No. 6364 on DIN machine pallets.
Features:
With this centring pin, pallets, angles and columns are easier to centre on machine tables. . The pilot diameter makes fitting a basic unit easy, even when it is tilted by up to 3° (10 mm to 200mm).
| Order no. | 87817 |
|---|
