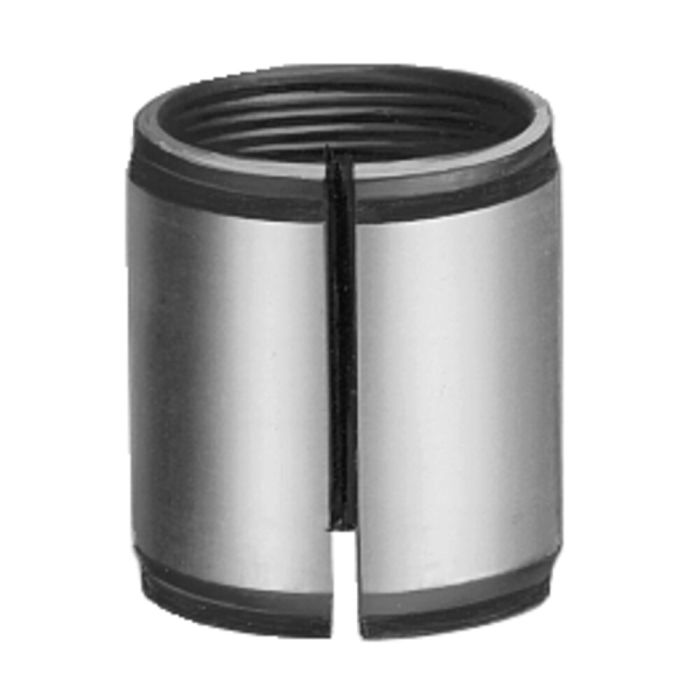

Centring sleeve, slotted
For a precise centering on grid holes, dia. 22,1 mm, length 23 mm
| Order no. | Article no. | dia. D -0.03 | G | L -0.2 | dia. S | Suitable for spacer thickness
[mm] | Weight
[g] | Availability | Your Price |
| 300475 | 6363-12-031-26 | 16,1 | R1/4 | 26 | 12,5 | 4 - 6 | 10 | | |
| 300483 | 6363-16-031-33 | 22,1 | M18 | 33 | 16,5 | 7 - 10 | 33 | | |
| 78725 | 6363-12-031-20 | 16,1 | R1/4 | 20,5 | 12,5 | - | 8 | | |
| 78733 | 6363-16-031-23 | 22,1 | M18 | 23 | 16,5 | - | 23 | | |
| | | | | | | | | |
Application:
Using slotted centring sleeves, all support and positioning elements can be precisely centred on grid holes.
More Information | Order no. | 78733 |
|---|
