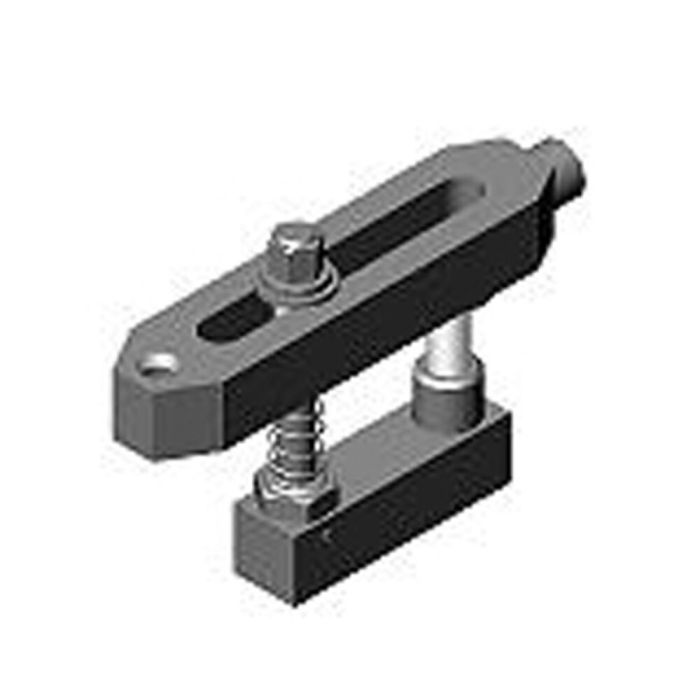

Clamp element, mechanical
With increased reach, clamping range 60-96 mm (Typ 16)
| Order no. | Article no. | A x B x C | B1 | E | F | G | H | Weight
[g] | Availability | Your Price |
| 76620 | 7110ML-16-1 | 30x30x107 | 45,5 | 196 | 30 | M16 | 60-96 | 2230 | | |
| 76646 | 7110ML-12-1 | 25x25x85 | 35 | 156 | 20 | M12 | 48-78 | 1060 | | |
| | | | | | | | | | |
| Order no. | H1 | I | k | L | L1 | N | SW1 | SW2 |
| 76620 | 145 | 14 | 16-61 | 49 | 75 | 13 | 24 | 27 |
| 76646 | 112 | 12,5 | 14-47 | 40 | 60 | 10 | 19 | 22 |
| | | | | | | | |
Note:
Accessories for clamp element No. 7110ML-**-1 are No. 7110D/DM, 7110DS, 7110DK/DF, 7110DH/DI and 7110DV.
More Information | Order no. | 76620 |
|---|
| Operating mode | Mechanical |
|---|
| Type | 16 |
|---|
| Max. height [mm] | 96 |
|---|
| Min. height [mm] | 60 |
|---|
