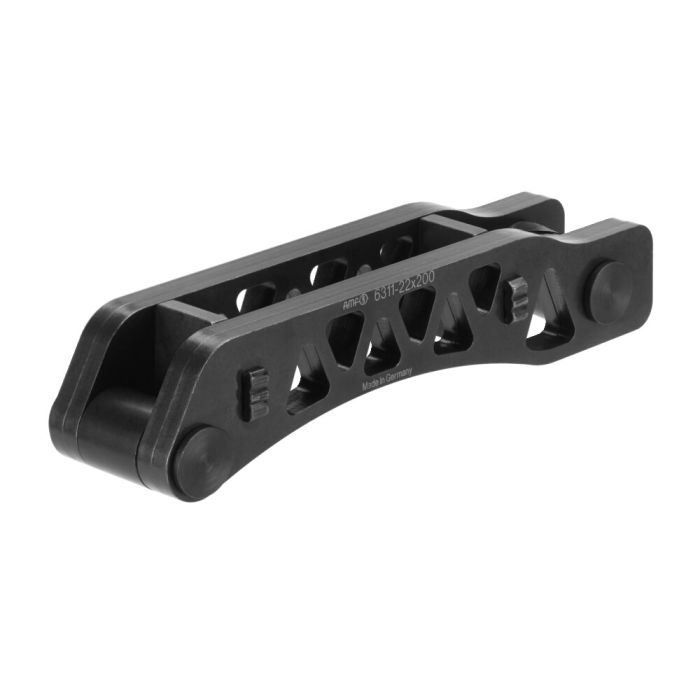

Clamp, light design

Application:
The clamp is used for all clamping tasks in which clamping is effected via T-grooves, grooves and threaded bores.

Note:
For clamping, either clamping screws DIN 787, stud bolts DIN 6379 and cheese head screws ISO 4762 can be used.

Advantage:
Through the weight-saving design, the clamping iron is up to 50% lighter, but still offers 100% clamping force and can thus also be used even for rotating clamping tasks. Variable and fast adjustment option at a distance from the workpiece.

*depending on depth of slot to DIN 650 and position of fixture nut.
