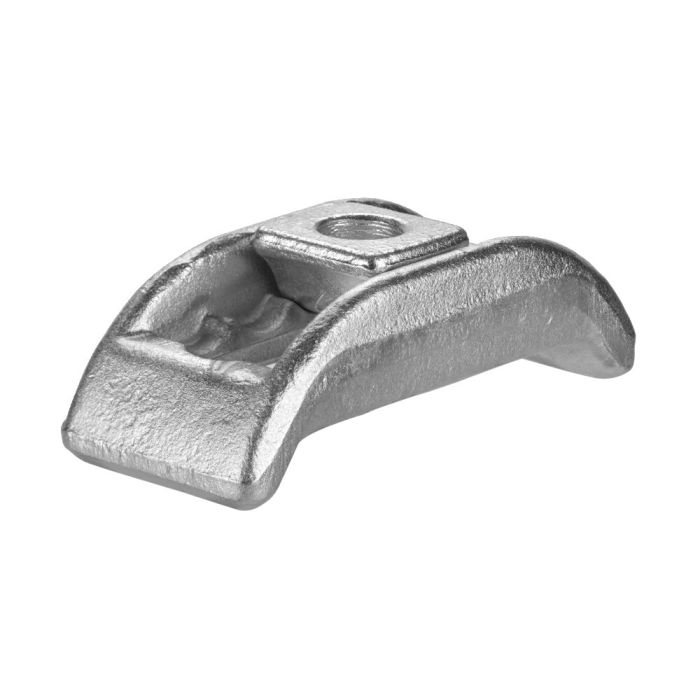

Clamp, short with saddle

Size 32, for clamping screw M30, clamping height 0-80 mm

Order no.

73973

Order no.	Size	for clamping screw	H1	B1	B2 x L	D	E1	E2	H2	k	Weight [g]
73932	13	M12	0-35	13	38x 88	48	23	28	30-55	14	260
73940	18	M16	0-55	18	56x130	74	29	38	42-84	18	809
73957	22	M20	0-65	22	66x144	80	32	46	50-100	20	1253
73965	26	M24	0-75	25	76x174	100	39	52	54-111	24	1718
73973	32	M30	0-80	31	90x200	110	44	61	62-125	28	2785

Note:
Suitable fastening elements: DIN 787 clamping bolts, DIN 6340 washers and DIN 6330B hexagon nuts.
