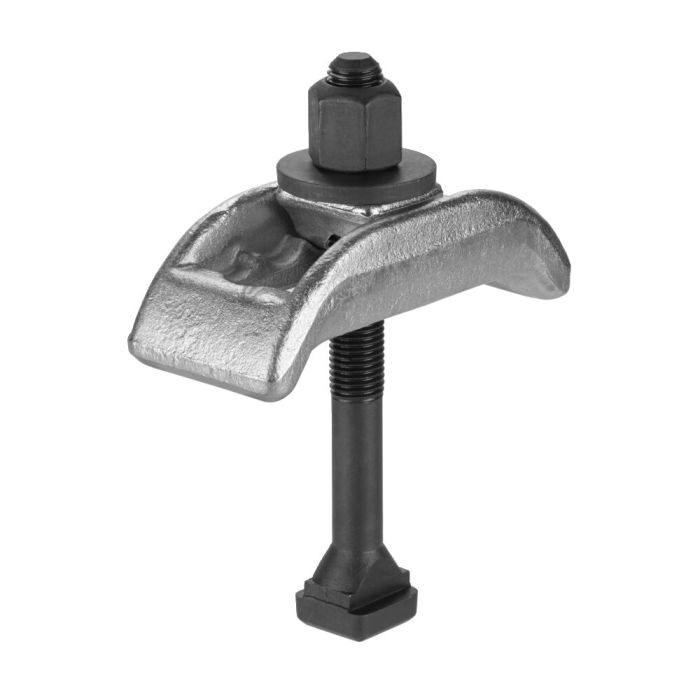

Clamp, short, with U-piece, complete
Slot 18 mm, with clamping stud M16x18x160, clamping height 0-55 mm
Order no.
77198
| Order no. | 77198 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 18 |
| Clamping screw metric [M] | 16 |
| Min. clamping height [mm] | 0 |
| Max. clamping height [mm] | 55 |
