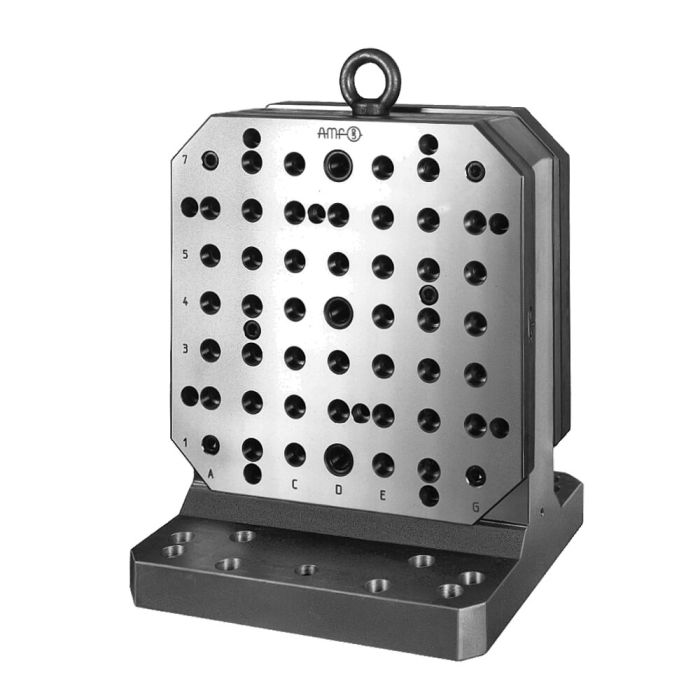

Clamping angle

Features:
Clamping thread (M): M16 Grid pitch (R): 50 mm ± 0.01 mm Grid hole (D): Ø 22F7 Grid hole (E): 13 mm Perpendicularity: 0.01/100 mm Clamping surface faces: smoothed after nitration Hardness (clamping pallet ): 700-100 HV1 plasma nitrated Material: basic unit: aluminum casting Pallet: case-hardened steel Alignment hole and centre hole: with hardened bushes in accordance with DIN 179 with clamping and base surface Base surface: with hole pattern according to table or drawing, suitable for machine table in accordance with DIN 55201 Contour (clamping pallets): cut using an oxyacetylene flame/sawn Mounted clamping pallet: according to table

Note:
With the clamping bracket No. 6362D** the rectangularity tolerance consists of the tolerance of clamping bracket No. 6362B (basic unit) and the parallelism tolerance of the pallet.
