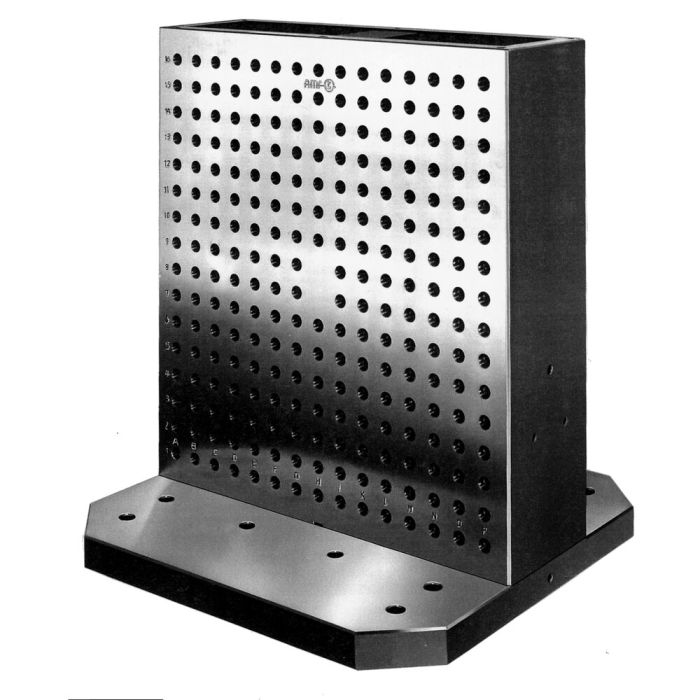

Clamping angle, double sided
Clamping thread M16, grid 50 mm, size 800x920 mm
Order no.
88039
Features:
Clamping thread (M): M16 Grid pitch (R): 50 mm ± 0.01 mm Grid hole (D): Ø 22F7 Grid hole (E): 13 mm Perpendicularity: 0.01/200 mm Clamping surface faces: smoothed after nitration Hardness: 700-100 HV1 plasma nitrated Material: case-hardened steel Alignment hole and centre hole: with hardened bushes in accordance with DIN 179 with base surface Base surface: with hole pattern according to table or drawing, suitable for machine table in accordance with DIN 55201
| Order no. | 88039 |
|---|---|
| Tolerance C | ±0,05 |
