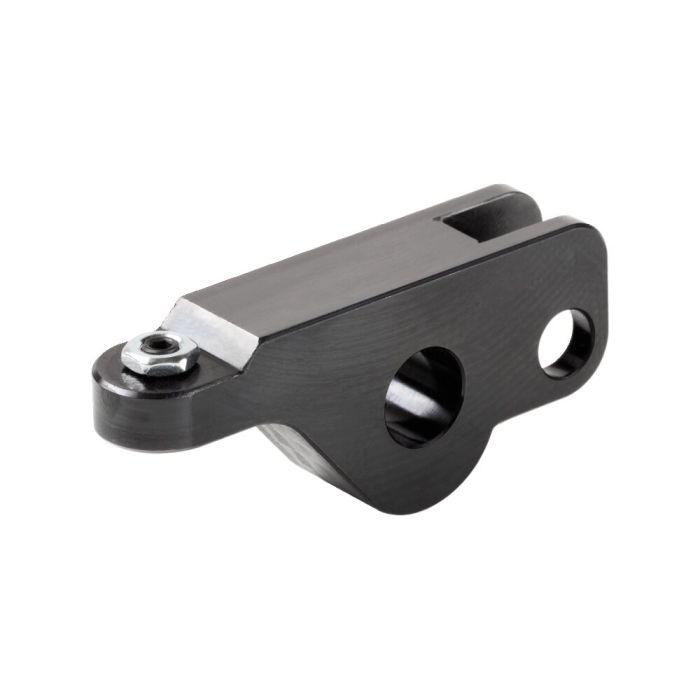

Clamping arm

For link clamp 6942KK, load lever 28 mm, max. clamping force 5,3 kN, max. piston force 8 kN

Order no.

328542

Product variants

Order no.	Article no.	Piston force F5 at 100 bar [kN]	Clamping force F1 at 100 bar [kN]	Weight [g]
326850	6942KL-25-04	4,9	3,2	46
328542	6942KL-32-04	8,0	5,3	76
328559	6942KL-38-04	11,3	7,5	99
328641	6942KL-45-04	15,9	10,5	195
552015	6942KL-56-04	25,5	17,0	311

Order no.	b	C	dia. D	dia. E	G	H	H7	k	L	N	O	P	R	SW	SW1
326850	16,0	24,0	8	6	50,0	6	0,5	9,5	51,00	26,2	M4	12,0	6,00	2,0	7
328542	18,5	28,0	10	8	50,0	8	0,5	11,5	59,25	30,2	M4	13,5	6,75	2,0	7
328559	21,0	31,5	12	10	47,5	9	0,0	12,0	67,50	34,9	M5	16,0	8,00	2,5	8
328641	24,5	37,0	16	12	52,5	14	1,0	17,0	80,00	39,6	M6	19,0	9,50	3,0	10
552015	30,0	45,0	16	12	52,5	16	1,0	19,0	96,00	48,6	M8	22,0	9,50	4,0	13

Details

Design:
Hardened, tempered and burnished steel.

Application:
For link clamp 6942KK.

Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.

Formula to determine the clamping force F1:
Clamping force = F1 [kN], piston force = F5 [kN], operating lever = B [mm], load lever = C [mm]
F1 = F5 x B / C

Technical specifications

More Information
Order no.	328542
Product type	Clamping arm link clamp
Max. clamping force [kN]	5.3
