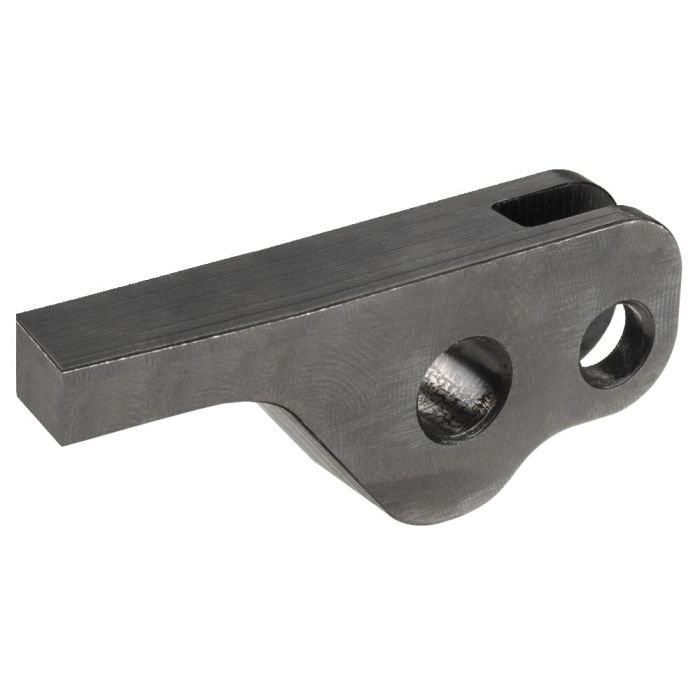

Clamping arm, blank
For link clamp 6959C, load lever 76 mm
Order no.
325258
Design:
Hardened, tempered and burnished steel.
Application:
For link clamp 6959C.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
Formula to determine the clamping force F1:
Clamping force = F1 [kN], piston force = F5 [kN], operating lever = B [mm], load lever = C [mm]
F1 = F5 x B / C
| Order no. | 325258 |
|---|---|
| Product type | Clamping arm |
| Max. operating pressure [bar] | 250 |
