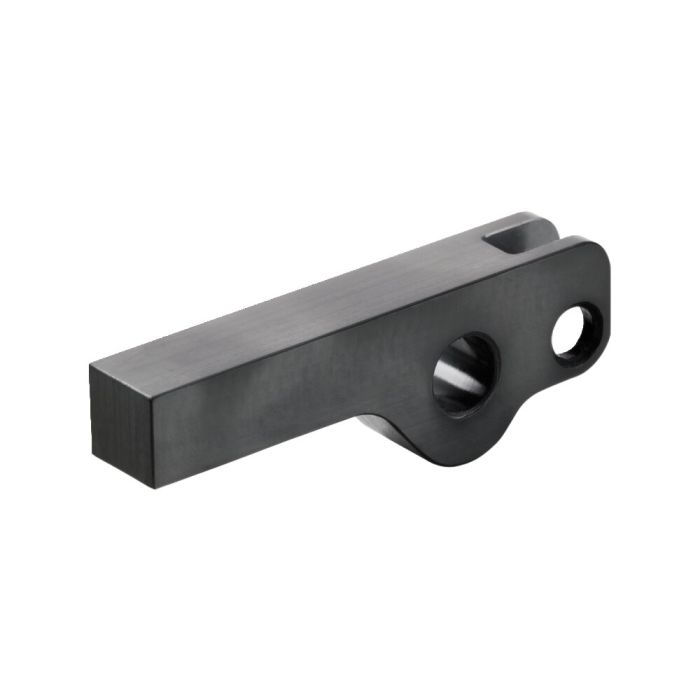

Clamping arm blank
For link clamp 6942KK, load lever 44 mm
Order no.
326975
Design:
Hardened, tempered and burnished steel.
Application:
For link clamp 6942KK.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
Formula to determine the clamping force F1:
Clamping force = F1 [kN], piston force = F5 [kN], operating lever = B [mm], load lever = C [mm]
F1 = F5 x B / C
| Order no. | 326975 |
|---|---|
| Product type | Clamping arm link clamp |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Link clamp Nr. 327569 Max. clamping force 3,2 kN, max. piston force 4,9 kN, stroke 19 mm, clamp arm left
- Link clamp Nr. 327585 Max. clamping force 3,2 kN, max. piston force 4,9 kN, stroke 19 mm, clamp arm right
Similar products
- Clamping arm Nr. 326850 For link clamp 6942KK, load lever 24 mm, max. clamping force 3,2 kN, max. piston force 4,9 kN
