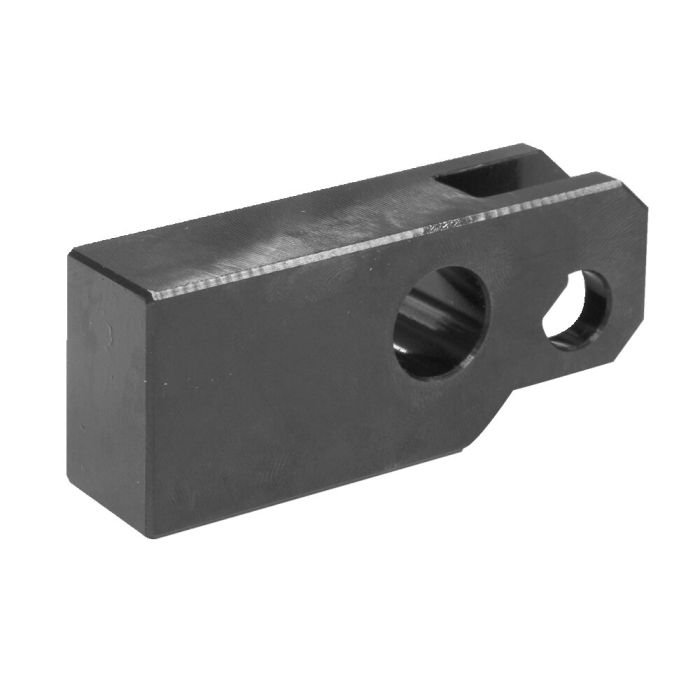

Clamping arm, blank
For link clamp 6959KL and 6959KB, load lever 79 mm
Order no.
400325
Design:
Hardened, tempered and burnished steel.
Application:
For link clamp 6959KL and 6959KB.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
Formula to determine the clamping force F1:
Clamping force = F1 [kN], piston force = F5 [kN], operating lever = B [mm], load lever = C [mm]
F1 = F5 x B / C
| Order no. | 400325 |
|---|---|
| Product type | Clamping arm |
| Max. operating pressure [bar] | 350 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
Similar products
- Clamping arm, standard Nr. 325324 For link clamp 6959KL, load lever 51,5 mm, max. clamping force 33,8 kN
