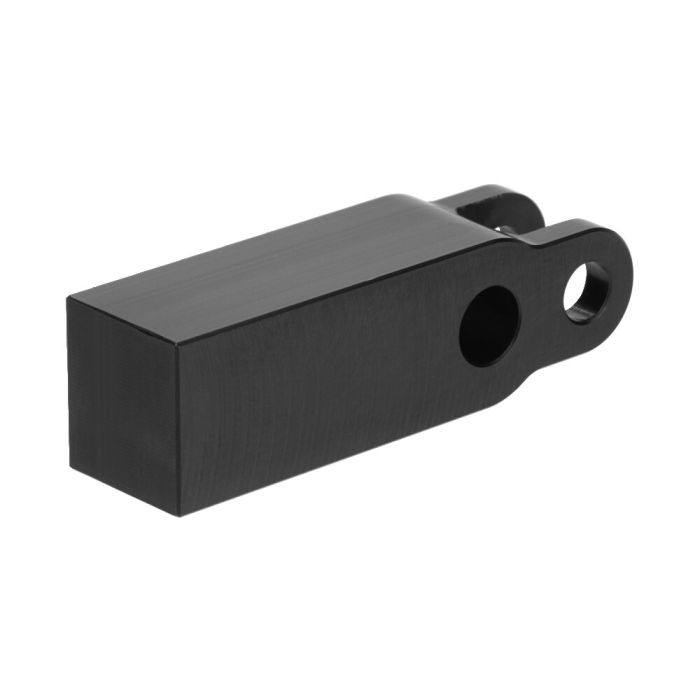

Clamping arm, blank
For vertical clamp with linear stroke 6958C, load lever 60 mm
Order no.
556985
Design:
Hardened, tempered and burnished steel.
Application:
For vertical clamp with linear stroke 6958C.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
| Order no. | 556985 |
|---|---|
| Product type | Clamping arm |
| Max. operating pressure [bar] | 250 |
| Special features | With linear stroke |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Vertical clamp with linear stroke Nr. 561040 Max. operating pressure 250 bar, max. clamping force 5 kN, stroke 6 mm, double acting
