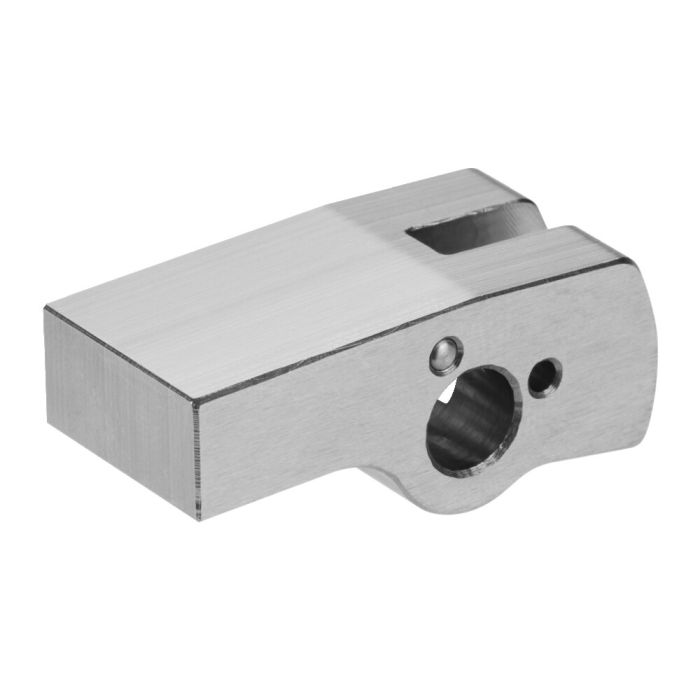

Clamping arm blank
For vertical clamp with pivot arm 6958DH, load lever 50 mm
Order no.
570548
Design:
Clamping arm, unhardened steel.
Application:
For vertical clamp with pivot arm 6958DH.
Note:
Clamping pressure, lever ratio, flow volume and clamp arm weight must always be observed.
Formula to determine the clamping force F1:
Clamping force = F1 [kN], piston force = F5 [kN], operating lever = B [mm], load lever = C [mm]
F1 = F5 x B / C
| Order no. | 570548 |
|---|---|
| Product type | Clamping arm |
| Max. operating pressure [bar] | 250 |
| Special features | With pivot arm |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Vertical clamp with pivot arm Nr. 570472 Max. operating pressure 250 bar, max. piston force 13,9 kN, double acting
Similar products
- Clamping arm Nr. 570539 For vertical clamp with pivot arm 6958DH, load lever 22 mm, max. clamping force 17,4 kN
- Clamping arm Nr. 570540 For vertical clamp with pivot arm 6958DH, load lever 31,5 mm, max. clamping force 11,6 kN
- Clamping arm Nr. 570541 For vertical clamp with pivot arm 6958DH, load lever 41 mm, max. clamping force 8,7 kN
