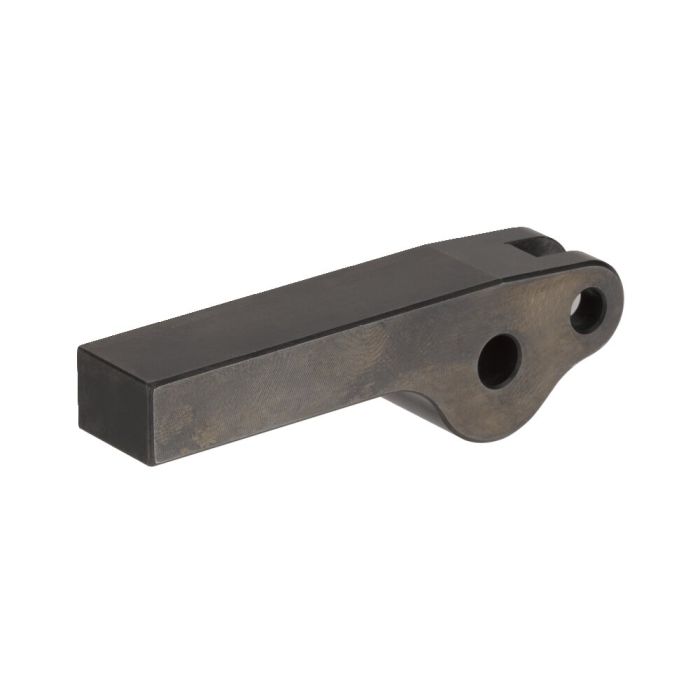

Clamping arm blank from steel
For vertical clamp 6958E and 6958EFT, load lever 100 mm
Order no.
562250
Design:
Made of aluminium, black anodised.
| Order no. | 562250 |
|---|---|
| Product type | Clamping arm |
| Max. operating pressure [bar] | 250 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Vertical clamp, cartridge flange Nr. 562196 Max. operating pressure 250 bar, max. piston force 49 kN, double acting
Similar products
- Clamping arm out of steel Nr. 562252 For vertical clamp 6958E and 6958EFT, load lever 64 mm, max. clamping force 23,13 kN
- Clamping arm out of steel Nr. 562253 For vertical clamp 6958E and 6958EFT, load lever 79 mm, max. clamping force 18,74 kN
- Clamping arm out of steel Nr. 562254 For vertical clamp 6958E and 6958EFT, load lever 94 mm, max. clamping force 15,75 kN
