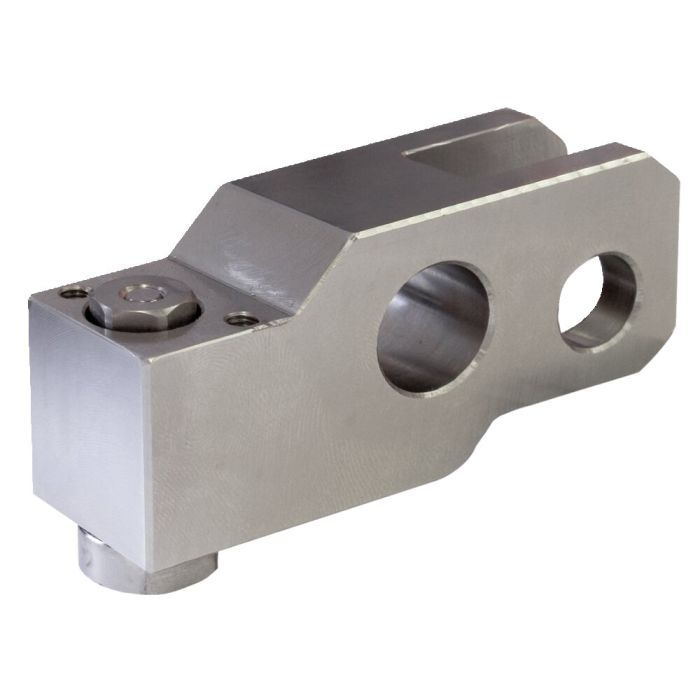

Clamping arm, standard
For link clamp 6959KL, load lever 42 mm, max. clamping force 21,6 kN
| Order no. | Article no. | Clamping force F1 at 100 bar
[kN] | Clamping force F1 at 350 bar
[kN] | Weight
[g] | Availability | Your Price |
| 325241 | 6959KL-16-30 | 1,5 | 5,4 | 65 | | |
| 325266 | 6959KL-20-30 | 2,4 | 8,4 | 203 | | |
| 325282 | 6959KL-25-30 | 3,8 | 13,2 | 286 | | |
| 325308 | 6959KL-32-30 | 6,2 | 21,6 | 522 | | |
| 325324 | 6959KL-40-30 | 9,7 | 33,8 | 867 | | |
| | | | | | |
| Order no. | b | C | dia. D
| dia. E | H | H1 | H2 | H3 | H4 | H5 | k | L | P | SW1 | SW2 |
| 325241 | 16,0 | 21,0 | 10 | 8 | 21 | 15 | 2 | 8 | 3 | 5 | 21 | 50 | 15 | 11 | 11 |
| 325266 | 21,0 | 27,5 | 14 | 10 | 31 | 25 | 6 | 15 | 3 | 5 | 31 | 68 | 20 | 11 | 11 |
| 325282 | 24,0 | 31,5 | 16 | 12 | 35 | 27 | 6 | 17 | 3 | 8 | 35 | 76 | 24 | 11 | 13 |
| 325308 | 32,0 | 42,0 | 20 | 16 | 42 | 27 | 6 | 19 | 3 | 15 | 35 | 95 | 30 | 11 | 13 |
| 325324 | 39,5 | 51,5 | 26 | 20 | 52 | 27 | 10 | 27 | 3 | 25 | 35 | 117 | 35 | 11 | 17 |
| | | | | | | | | | | | | | | |
Design:
Hardened, tempered and nickel-plated steel. Scope of supply includes pressure screw.
Application:
For link clamp 6959KL.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
More Information | Order no. | 325308 |
|---|
| Product type | Clamping arm |
|---|
| Max. clamping force [kN] | 21.6 |
|---|
| Max. operating pressure [bar] | 350 |
|---|
