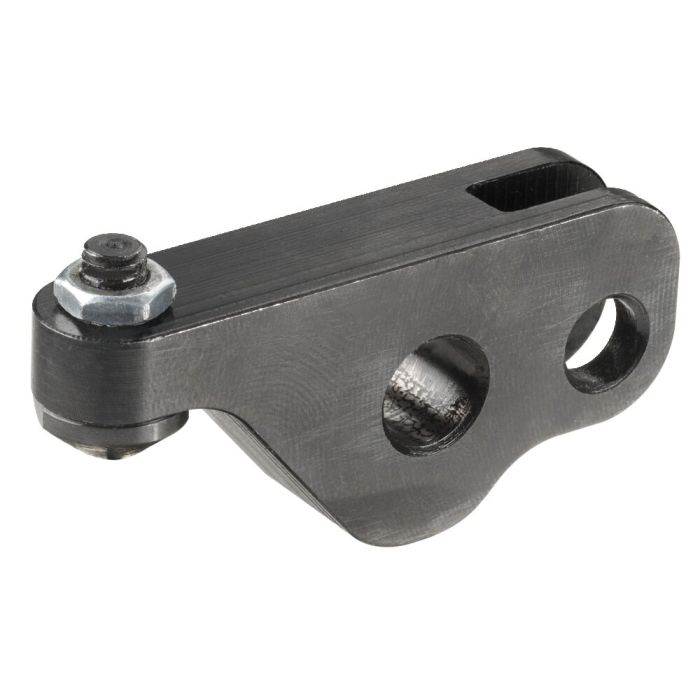

Clamping arm, standard
For link clamp 6959C, load lever 37 mm, max. clamping force 7,9 kN
| Order no. | Article no. | Clamping force F1 at 100 bar
[kN] | Clamping force F1
at 250 bar
[kN] | Weight
[g] | Availability | Your Price |
| 325225 | 6959C-16-30 | 1,2 | 3,1 | 70 | | |
| 325233 | 6959C-20-30 | 1,9 | 4,9 | 106 | | |
| 325274 | 6959C-32-30 | 5,2 | 12,9 | 395 | | |
| 325464 | 6959C-25-30 | 3,1 | 7,9 | 222 | | |
| 325522 | 6959C-12-30 | 0,67 | 1,7 | 35 | | |
| | | | | | |
| Order no. | b | C | dia. D
| dia. E | G | H | k | L | N | O x T | H7 | P | R | SW1 | SW2 |
| 325225 | 16,5 | 26 | 9 | 7 | 50° | 7,0 | 12,0 | 55,5 | 26,7 | M5 x 16 | 4,0 | 12 | 6,0 | 8 | 2,5 |
| 325233 | 19,5 | 31 | 10 | 8 | 50° | 8,0 | 13,0 | 65,0 | 32,4 | M6 x 20 | 7,0 | 15 | 7,5 | 10 | 3,0 |
| 325274 | 30,0 | 45 | 17 | 13 | 45° | 12,0 | 17,0 | 100,0 | 50,0 | M10 x 30 | 13,0 | 24 | 2x8 | 17 | 5,0 |
| 325464 | 24,0 | 37 | 13 | 10 | 45° | 10,0 | 15,0 | 80,0 | 37,0 | M8 x 20 | 5,0 | 20 | 6,0 | 13 | 4,0 |
| 325522 | 13,5 | 22 | 7 | 5 | 50° | 4,5 | 8,5 | 45,5 | 20,8 | M4 x 12 | 3,5 | 10 | 5,0 | 7 | 2,0 |
| | | | | | | | | | | | | | | |
Design:
Tempered steel, tempered and burnished. Delivery with set screw ISO 4027 hardness class 45H.
Application:
For link clamp 6959C.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
More Information | Order no. | 325464 |
|---|
| Product type | Clamping arm |
|---|
| Max. clamping force [kN] | 7.9 |
|---|
| Max. operating pressure [bar] | 250 |
|---|
