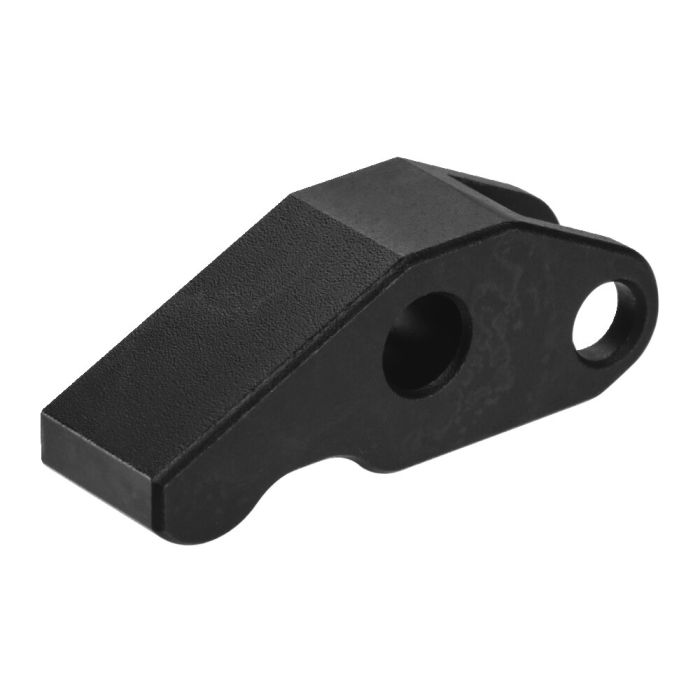

Clamping arm, standard
For the link clamp, double-sided 6959ED, load lever 30 mm, max. clamping force 4,9 kN
| Order no. | Article no. | Clamping force F1
at 350 bar*
[kN] | A | b | C | D | E | F | G | Øh | J | k | dia. L | M° | N | P | Q | R | S° | T | Availability | Your Price |
| 570462 | 6959ED-15-04 | 4,9 | 30,0 | 38,3 | 14 | 12 | 4,2 | 5 | 4,2 | 5 | 14,0 | 3 | 6 | 25 | 7,1 | 9,4 | 5,0 | 11,7 | 27 | 5,0 | | |
| 570463 | 6959ED-18-04 | 7,6 | 37,6 | 47,5 | 18 | 14 | 5,0 | 7 | 5,0 | 6 | 18,3 | 4 | 7 | 30 | 8,1 | 11,5 | 5,5 | 13,3 | 29 | 6,5 | | |
| 570464 | 6959ED-22-04 | 11,6 | 44,7 | 56,9 | 20 | 18 | 6,5 | 9 | 6,0 | 8 | 21,7 | 2 | 9 | 25 | 10,1 | 16,0 | 8,5 | 15,0 | 25 | 10,0 | | |
| | | | | | | | | | | | | | | | | | | | | | |
Design:
Heat treated and burnished steel.
Application:
For the link clamp, double-sided 6959ED.
Note:
Manufacturing dimensions available on request for in-house production.
More Information | Order no. | 570462 |
|---|
| Product type | Clamping arm |
|---|
| Max. clamping force [kN] | 4.9 |
|---|
| Max. operating pressure [bar] | 350 |
|---|
