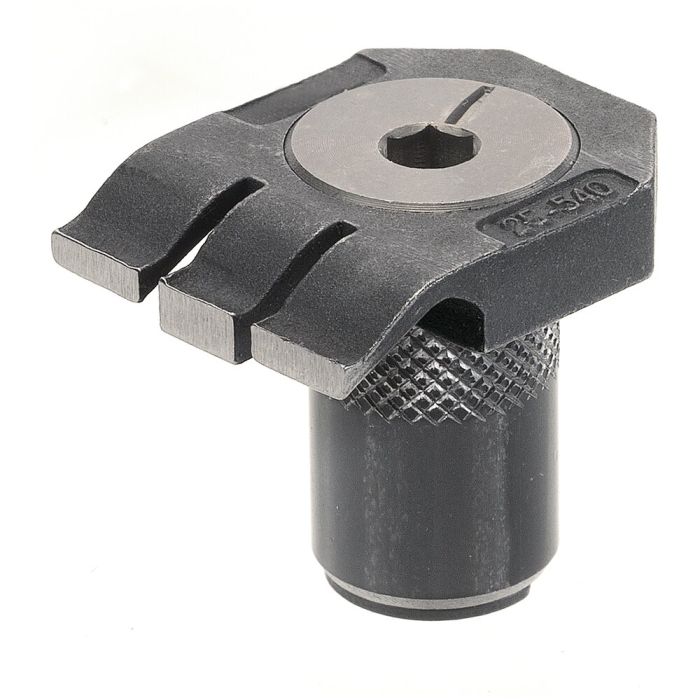

Clamping element, horizonal
Clamping force 4 kN, clamping height 7,5 mm, stroke Eccentric 0,86 mm
Order no.
70698
Application:
These hold-down clamps rotate around a camshaft that provides the clamping force. They can clamp in any direction.
Clamping element (1 rigid stop) enables the workpiece to lie flush with the stops.
SW of the cam stroke = 4 mm
| Order no. | 70698 |
|---|---|
| Product type | Flat clamps |
