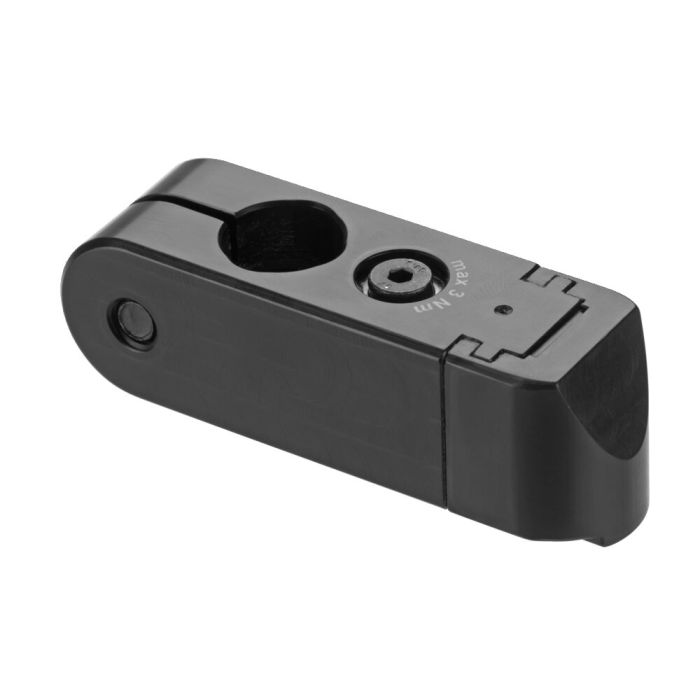

Clamping element, lateral
For clamping workpieces parallel to the pick-up axis, dimensions 82 x 25 mm
Order no.
568813
Application:
Workpieces can be clamped parallel to the pick-up axis using the lateral clamping element. An optimal form or closure to the workpiece can be generated by adapted thrust pieces.
Features:
- Hardened and burnished clamping element made of wear-resistant case-hardened steel
- When unclamped, the clamping element remains self-locking in position
- Optimized shape for minimal interfering contours
- Conversion of all thrust pieces possible
Note:
Observe tightening torque.
| Order no. | 568813 |
|---|---|
| Product type | Spannelemente |
