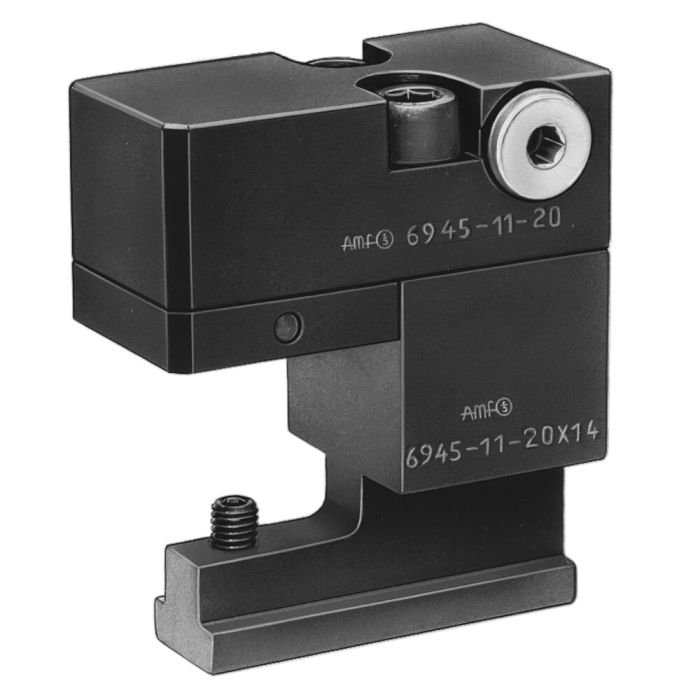

Clamping Head, complete with base
Design:
Cylinder body made of tempering steel, blued. Piston case-hardened and ground. Built-in return spring, complete with locating pin.
Application:
The clamping head is used to clamp press tools on the press table and ram. The unit is inserted into the T-slot and moved above the clamping spot at the tool to be clamped. The clamping heads of size 20-63kN are suitable for a clamping height of 29 mm. Size 94kN suits a clamping height of 50 mm. To adjust other clamping heights, spacer plates of 10 mm and 20 mm are available.
Features:
Small dimensions. The hydraulic oil supply can be connected to any of the three sides.
Note:
If a clamping head is retrofitted with an spacer plate, the locating pin must be removed from the lower part of clamping head. T-Slot dimension F has to be considered urgently.
| Order no. | 61416 |
|---|---|
| Product type | Clamping elements |
| Max. clamping force [kN] | 20 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Holder for Clamping Head Nr. 110692 For parking clamp head No. 6945-11-**x18x** during tool changing
- Swivel Clamping Strap, hydraulic clamping, mechanic unclamping Nr. 65458 Max. operating pressure 250 bar, max. clamping force 30 kN, stroke, 0-5 mm, clamping height, 40-80 mm, slot 18 mm
