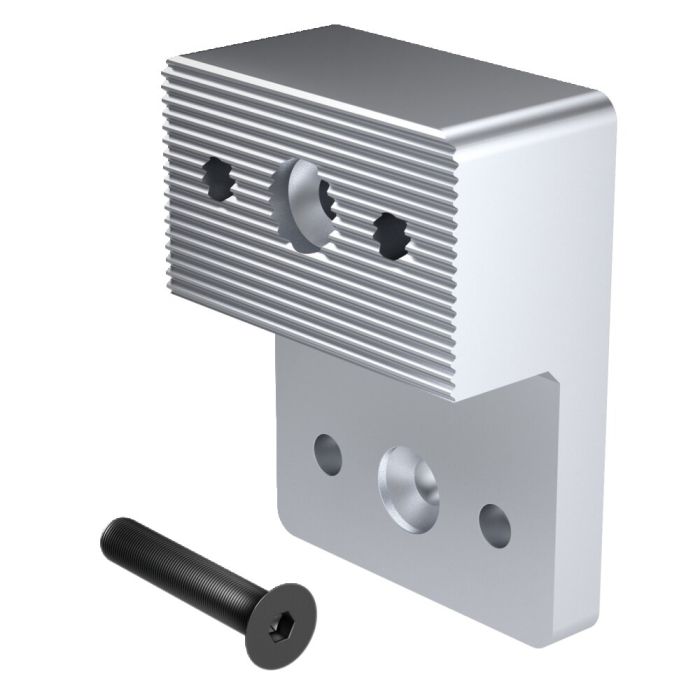

Clamping jaw

For the stable clamping jaw or the stop, width 90 mm, height 120 mm

Order no.

550514

Order no.	Size	b2	D	D1	E1	E2	H2	H3	Weight [g]
550512	19	65	8,1	9	38	12	35	85	889
550513	26	75	8,1	9	38	12	45	100	1306
550514	38	90	8,1	9	38	12	50	120	1829

Application:
Clamping jaw with serrated surface for machining of unmachined parts. Can be mounted on the stable clamping jaw or the stop.

More Information
Order no.	550514
Product type	Solid clamping jaws

CAD
