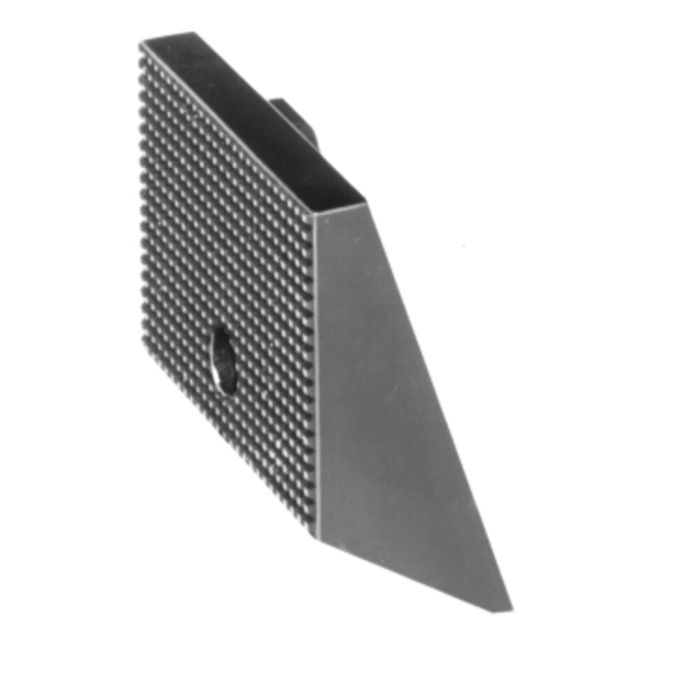

Clamping Jaws, serrated
With normal clamping faces, width 40 mm
| Order no. | Article no. | A | b | C | F | m | Q | α | Weight
[g] | Availability | Your Price |
| 320887 | 6972G-12 | 10 | 2,5 | 40,0 | 40 | 23,0 | 8,5 | 30° | 126 | | |
| 67025 | 6972G-05 | 6 | 2,7 | 29,5 | 30 | 22,0 | 3,0 | 15° | 75 | | |
| 67165 | 6972G-20 | 10 | 3,0 | 50,0 | 50 | 31,5 | 14,0 | 30° | 260 | | |
| 67256 | 6972G-32 | 10 | 3,0 | 65,0 | 65 | 37,0 | 17,0 | 30° | 505 | | |
| 67322 | 6972G-50 | 10 | 3,0 | 80,0 | 80 | 39,5 | 19,0 | 30° | 825 | | |
| | | | | | | | | | | |
Design:
Tempering steel, unhardened, with smooth clamping surface.
Application:
These clamping jaws can be shaped into any clamping form or ground flush for sensitive workpieces.
More Information | Order no. | 320887 |
|---|
| Product type | Clamping jaws |
|---|
