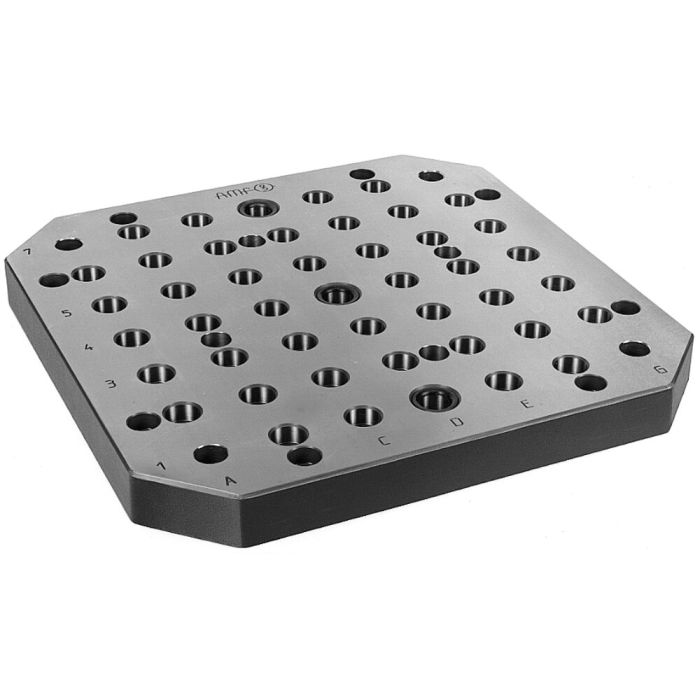

Clamping pallet Clamping thread M16, grid 50 mm, size 800x1000 mm
Order no. Article no. Z1 x R Z2 x R No's of positioning holes Weight Availability Your Price 87007 6361D-400x400-2 300 300 43 42
87049 6361D-400x500-2 300 400 56 53
87080 6361D-500x500-2 400 400 75 68
87122 6361D-500x630-2 400 500 92 83
87163 6361D-630x630-2 500 500 111 130
87205 6361D-630x800-2 500 700 150 163
87247 6361D-800x800-2 700 700 202 252
87288 6361D-800x1000-2 700 900 261 318
Order no. Size AxB H Tolerance H dia. N dia. p Alignment holes L1 ±0.013 Alignment holes L3 ±0.013 dia. S J T1 ±0.2 T2 ±0.2 T3 ±0.2 T5 ±0.2 U1 ±0.2 U2 ±0.2 U3 ±0.2 U4 ±0.2 87007 400x400 38 ± 0,02 20F7 20F7 150 - 13 50 150 100 175 25 150 175 100 25 87049 400x500 38 ± 0,02 20F7 20F7 150 200 13 50 150 100 175 25 200 175 100 25 87080 500x500 38 ± 0,02 20F7 20F7 200 - 13 60 200 100 225 25 200 225 100 25 87122 500x630 38 ± 0,02 20F7 20F7 200 200 13 60 200 100 225 25 200 225 100 25 87163 630x630 47 ± 0,03 25F7 25F7 200 - 17 70 200 100 300 100 200 300 100 100 87205 630x800 47 ± 0,03 25F7 25F7 200 300 17 70 200 100 300 100 200 300 100 100 87247 800x800 57 ± 0,035 25F7 25F7 300 - 17 100 300 100 300 100 300 300 100 100 87288 800x1000 57 ± 0,035 25F7 25F7 300 400 17 100 300 100 300 100 300 300 100 100
Features:
More Information Order no. 87288
