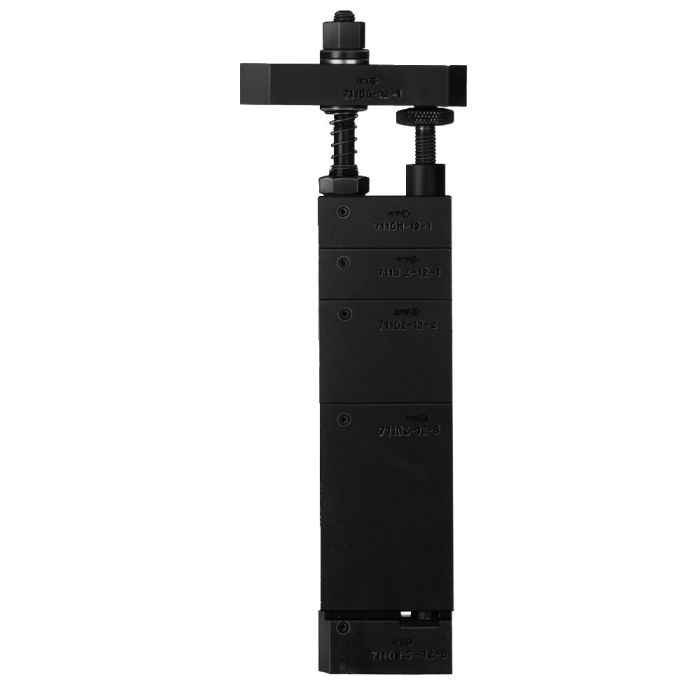

Clamping unit B
Clamping range 78-283 mm (Typ 12), max. clamping force 15 kN
Order no.
119388
Application:
Using the standard spacers (Z1-Z3), the clamping range is 78-283 mm (Type 12) or 100-346 mm (Type 16). The clamping unit consists of: No.7110M Clamp element, No.. 7110Z1-Z3 Spacer and No. 7110FS-3 Base element, clamp swivelling. Accessories: No. 7110GL, No. 7110K, No. 7110D/DM, No. 7110DS, No. 7110DK/DF, No. 7110DH/DI, No. 7110DV.
*At minimum clamp element dimension.
| Order no. | 119388 |
|---|---|
| Operating mode | Mechanical |
| Type | 12 |
| Max. height [mm] | 283 |
| Min. height [mm] | 78 |
