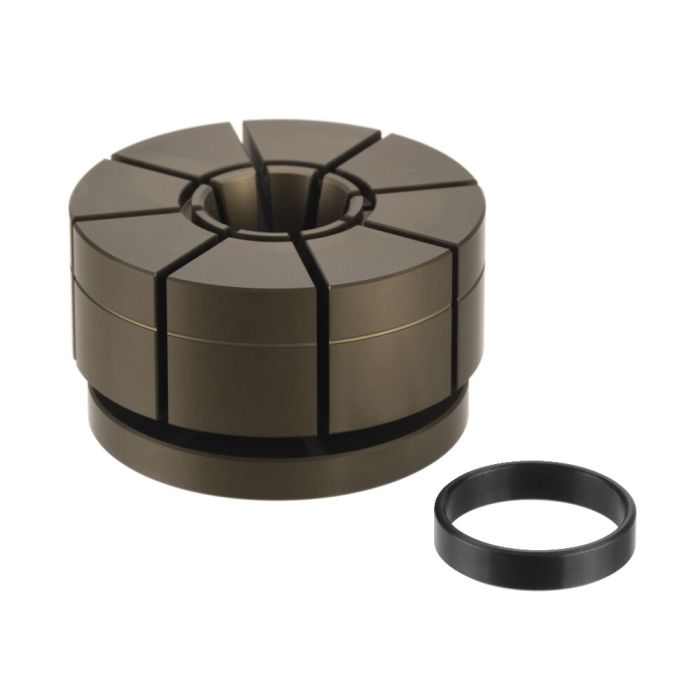

Collet attachment inside clamping

Design:
Collet attachments are always supplied with circlip.

Application:
The collet attachment is fastened using fastening kit 6375BI (observe torque specifications) on the base element 6375M. To secure the workpiece contour, the collet attachment must be clamped with the circlip. Then the workpiece contour is milled into the collet attachment with a minimum clamping depth of 10 mm. Then the circlip is removed, and the workpiece can be clamped. To secure new workpiece contours, the collet attachment can be milled off up to a diameter (D1).

Note:
The collet attachment must always be clamped with the workpiece or circlip. To remove the vertical play between the collet attachment and base element, light pretensioning must be applied by actuating the clamping stud after the workpiece is inserted.

Advantage:
- Clamping of blind holes and through-holes
- Clamping of delicate and thin-walled workpieces
- The workpiece is clamped without distortion due to the radially even clamping force imposed on it
- Multiple insertion of different workpiece contours possible
