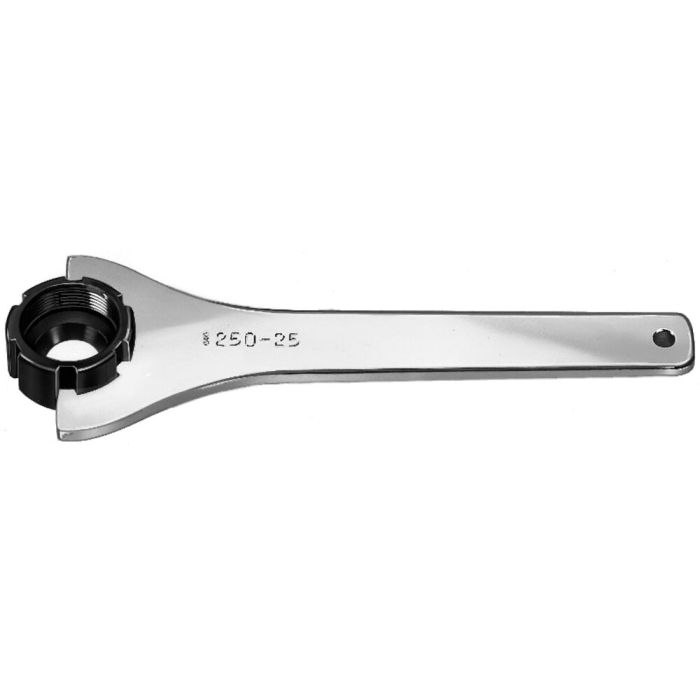

Collet chuck key
Steel zinc-plated, DIN ISO 15488 size 50 + nut thread M64x2, ⌀ 78 mm
| Order no. | Size
(DIN ISO 15488)
| DIN ISO 15488
Nut thread
| D | L | T | Weight
[g] | Availability | Your Price |
| 52233 | 16 | M22 x 1,5 | 32 | 163 | 4 | 125 | | |
| 52241 | 20 | M25 x 1,5 | 35 | 183 | 5 | 190 | | |
| 52258 | 25 | M32 x 1,5 | 42 | 203 | 6 | 255 | | |
| 52266 | 32 | M40 x 1,5 | 50 | 253 | 6 | 359 | | |
| 52274 | 40 | M50 x 1,5 | 63 | 285 | 6 | 480 | | |
| 52290 | 50 | (M64 x 2,0) | 78 | 350 | 7 | 810 | | |
| | | | | | | | |
Note:
These keys are available as article 250Md with a 1/2"- square socket for use with a torque wrench.
On request:
Bulk prices possible.
More Information | Order no. | 52290 |
|---|
| Finishing | Zinc-plated |
|---|
| Nut size min. [mm] | 78 |
|---|
| Nut size max. [mm] | 78 |
|---|
