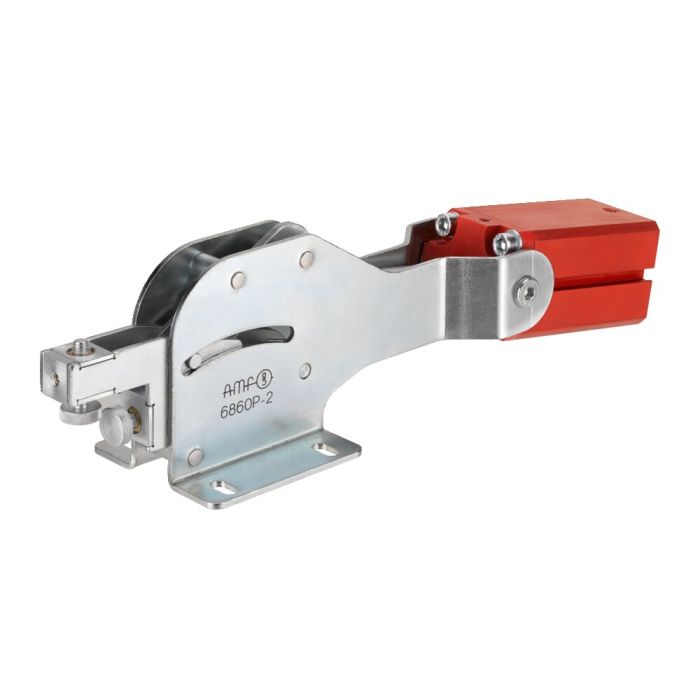

Combi-clamp, pneumatic
Size 1, max. clamping force 1 kN
Order no.
90787
Note:
Suitable proximity switches for end-position monitoring are available using order no. 392241.
0.3 m PUR cable with M8 connector and rotatable knurled nuts.
Switching function: NOC. Output: PNP.
F3 or. F4 = max. achievable clamping force at 6 bar.
Vn = air consumption per double stroke in dm³ at 6 bar.
| Order no. | 90787 |
|---|---|
| Product type | Combination clamp |
| Max. clamping force [kN] | 1 |
| Größe Schnellspanner | 1 |
| Material | Steel, galvanized |
