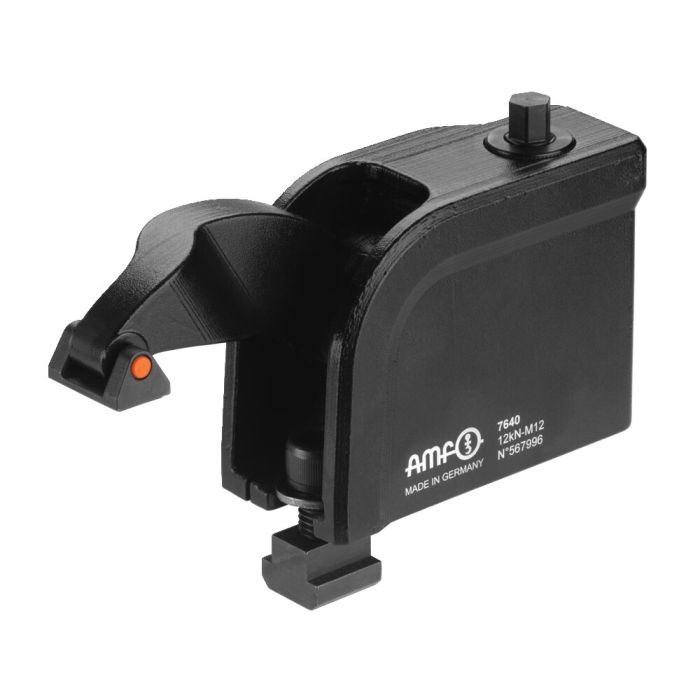

Compact clamp
Application:
Mount compact clamp on the machine table with fastening kit 7640BFS, then position and fasten to the machine table with the specified torque. Clamp workpiece (observe torque).
Note:
- Use only the corresponding AMF mounting kit 7640BFS.
- When using the clamping element without T-slot nut DIN508, the tensile strength of the support plate must be at least 900 N/mm²!
- Do not clean with compressed air.
Advantage:
- Continuous clamping
- clamping forces 12kN / 16kN
- compact design
- height scale permits fast presetting of the clamping height
- thrust piece captive-mounted
- repels dirt and chips
- Curved clamping arm ensures reliable vertical clamping of the fastening bolt with defined torque
- The compact clamp can be connected to the spacer element 7640Z without screws through a new type of quick-action clip
| Order no. | 567997 |
|---|---|
| Product type | Compact clamp |
| Size/load static [kN] | 16 |
| Slot [mm] | 14 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Spacer element with quick-action clip Nr. 567998 Size 12/16, slot 14 mm, grid plate M12, height 80 mm
- Thrust piece set Nr. 567999 Size 12/16, design fluted, crosswise prism, lengthwise prism and plastic
